Overview

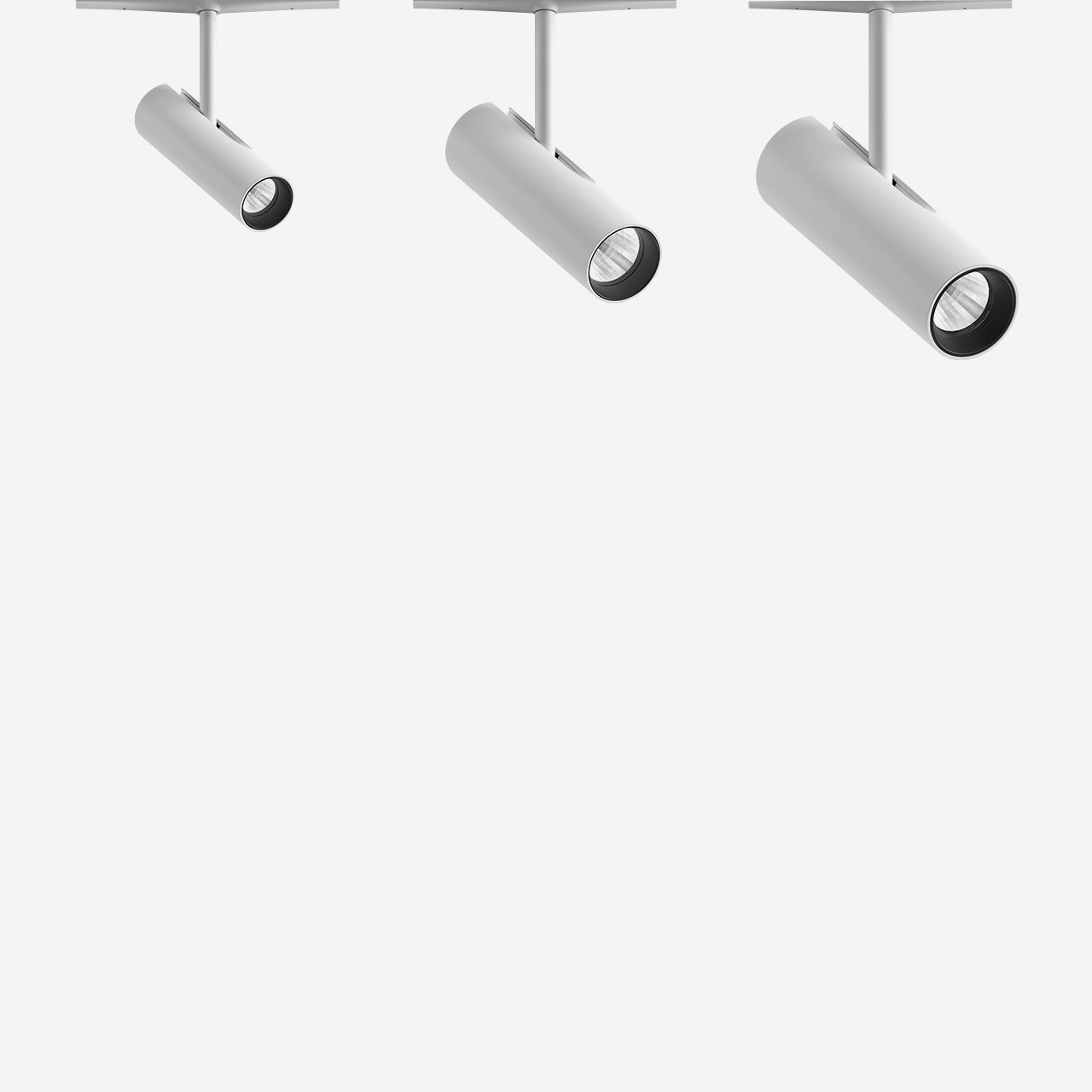

  • Miniaturised adjustable spotlight with adapter for installation on Superrail.
  • The Casambi integrated technology allows independent control of each light module inserted into the track.
  • The device can be controlled via the Casambi app, which enables on/off, dimming, and scene recall functions.
  • The app is available on the App Store and Google Play Store.
  • It can be integrated into the system's "Mesh" network, allowing the management of multiple devices.
  • ​Moving a device from one track to another does not require reprogramming.
  • A Casambi technology sensor is available for direct installation on the track.
  • Integrated beacon (iBeacon), which can be activated via the Casambi app, enabling functions such as push notification and indoor navigation-wayfinding.
  • Made of die-cast aluminium with passive dissipation system.
  • The swivel joints allow the spotlight to be rotated by 360° and tilted by 160° with the option of installing the spotlight on Superrail in both an "up" and "down” position.
  • The set back position of the optic unit guarantees a high level of visual comfort.
  • A high definition thermoplastic lens with the option of using additional accessories to create other light effects.
  • A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
  • The Superrail coupling device is fitted with a mechanical anti-fall safety double block.
  • An adapter is used to fix the device mechanically and tool-free to the Superrail.
  • Track power supply unit to be ordered separately.



Certifications & Approvals

  • CE
    CE
  • EAC
    EAC
  • ENEC-03
    ENEC-03
  • UK Conformity Assessed
    UK Conformity Assessed
  • BIS
    BIS

Key Features

  • Luminaire angle relative to the horizontal plane
    Luminaire angle relative to the horizontal plane
  • Vertical axis luminaire rotation
    Luminaire rotation about the vertical axis
  • Graduated scale and mechanical aiming lock
    Graduated scale and mechanical aiming lock
  • Adjustment of light beam opening
    Adjustment of light beam opening
  • Opti Beam high-performance reflectors
    Opti Beam high-performance reflectors
  • installation without tools
    installation without tools
  • Dimmable luminaire
    Dimmable luminaire
  • Compatibility with DALI protocol
    Compatibility with DALI protocol

product codes
