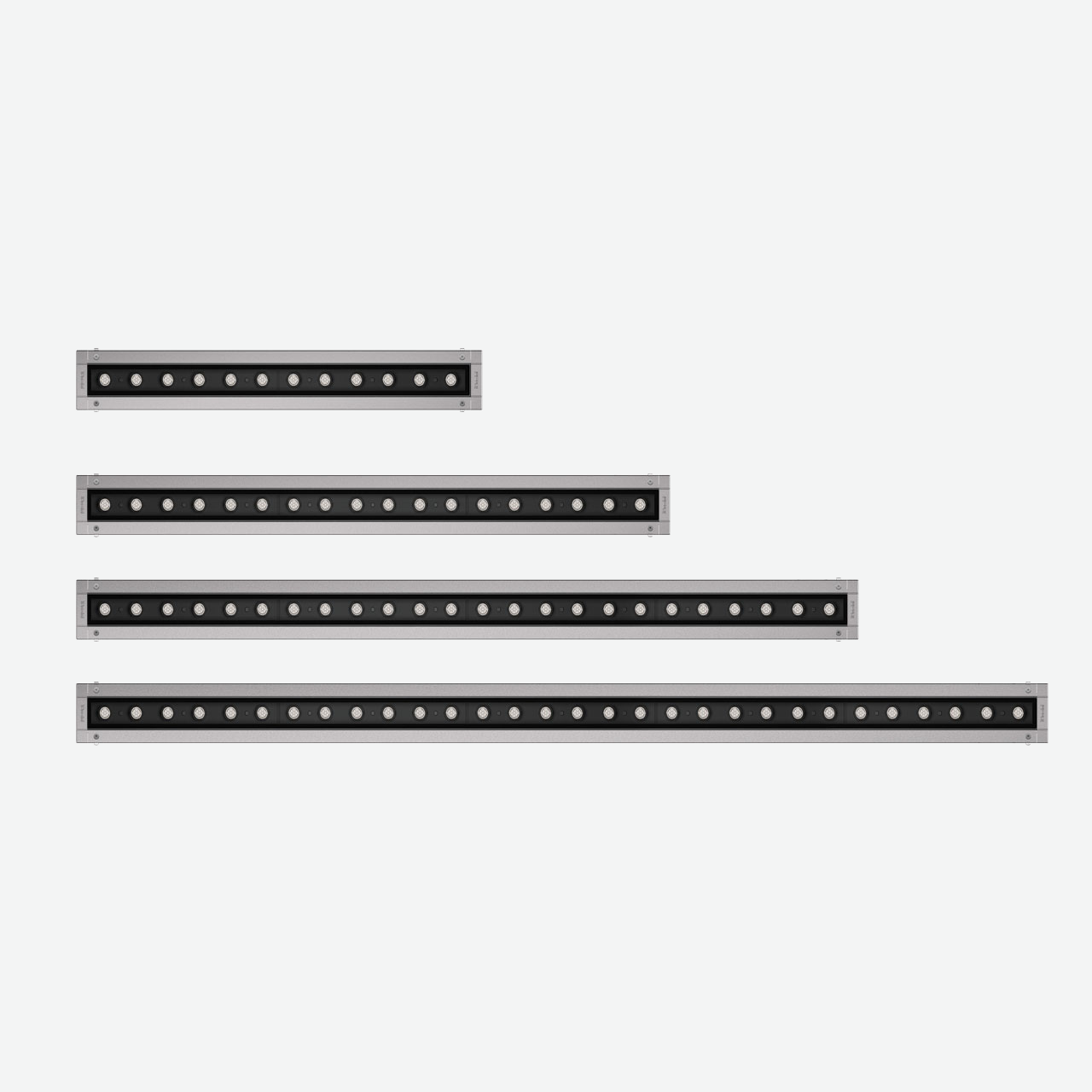

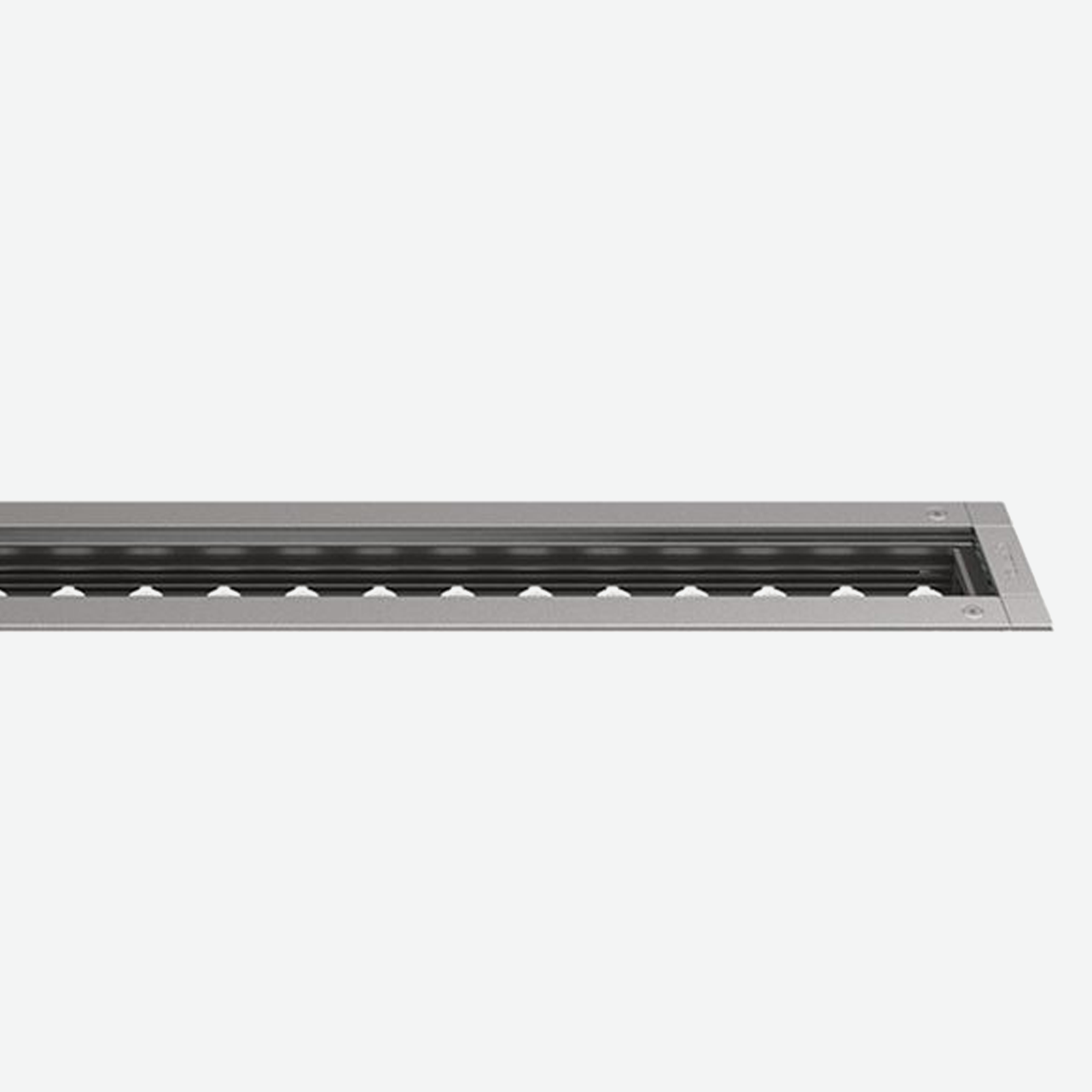

Linealuce 47 recessed Remote

Floor, wall or ceiling recessed luminaire intended for use with monochromatic and LED and RGBW light sources (44-52Vdc DMX-RDM), Tunable White and RGB (48-52Vdc DMX-RDM).

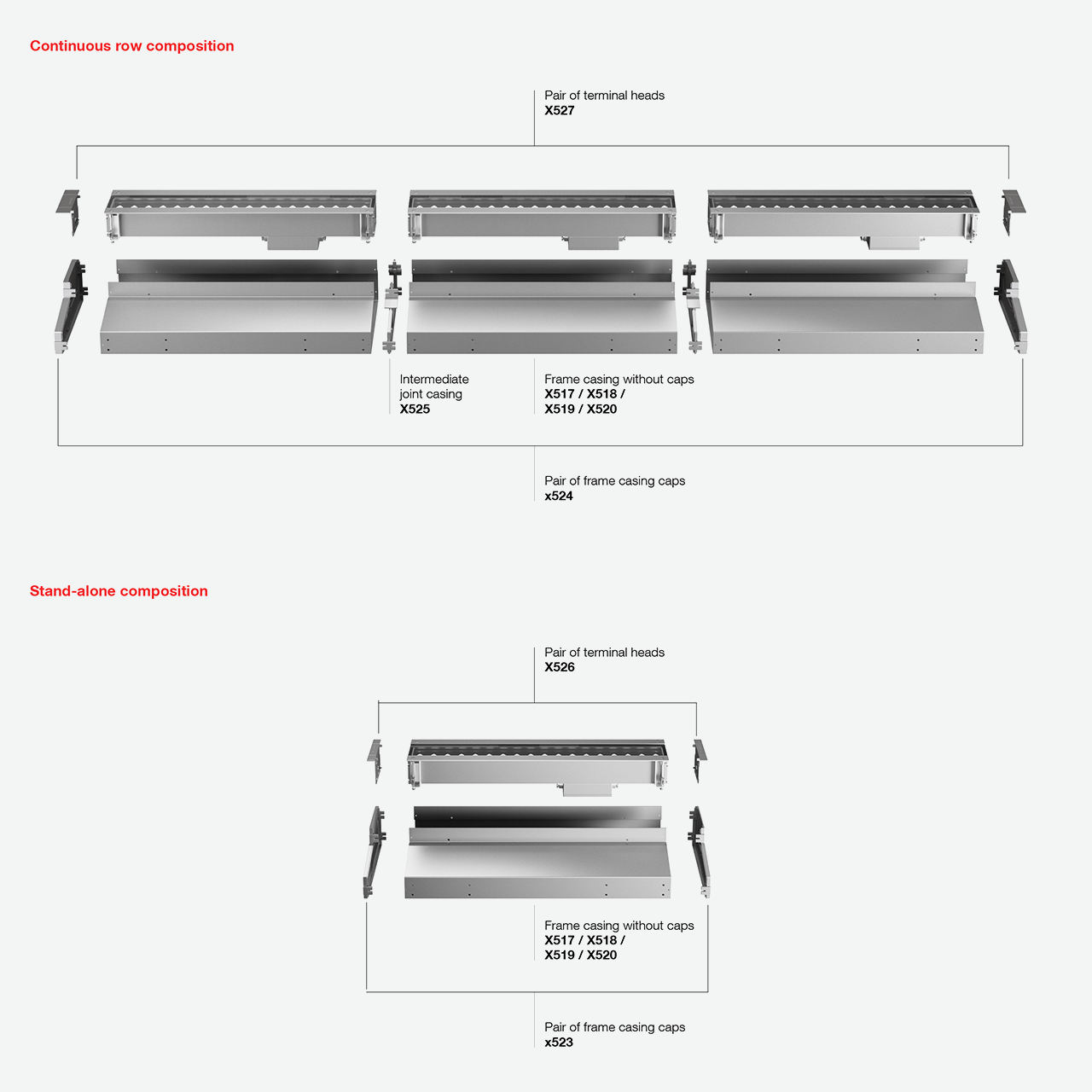

Comprising body, casing and end caps to be ordered separately.
Comprising body with housing for DMX-RDM and DALI drivers.
Extruded aluminium body and flush end caps in die-cast zamak complete with silicone gaskets.
Liquid acrylic paint ensuring high resistance to atmospheric agents and UV rays.
Optical compartment closed at the top by a 8mm thick transparent glass screen secured with silicone.
Supplied with double nickel-plated brass cable gland, outgoing rubber cables and IP68 male and female connectors at the end for pass-through wiring.
Equipped with optics with plastic lenses (methacrylate).
Wall-grazing Spot light distribution optics (WGS), Wall grazing Medium (WGM) and Wall grazing WF (Wide Flood), F (Flood).
Non-slip complying with R13 DIN 51130 certification.
Indoor accessory filters for elliptical distribution.
Indoor accessories: Longitudinal blade louvre.
Electronic power supply unit to be ordered separately IP67.
Built-in DMX-RDM driver with Insulation Class III.
Built-in DALI driver with Insulation Class II.
All external screws used are in A2 stainless steel.
Mechanical system designed to obtain continuous rows up to 10.5 m while considering environmental thermal expansion between -30 °C and +50 °C.
The appliances are designed and tested to withstand a static load of up to 20000 N and are suitable for vehicles with tyres.
The appliances cannot be used in lanes where they are subjected to horizontal stresses arising from acceleration, braking and/or changes of direction.

Protection Ratings

Class II
Class III
IP66
IP67

Mechanical Resistance

Protected against 1 J shocks
Protected against 20 J shocks
Static load resistance 1000kg
Static load resistance 2000kg

Certifications & Approvals

BIS pending
CCC S&E
CE
EAC
ENEC-03
ENEC pending
UK Conformity Assessed
BIS
QCERT

Key Features

Graduated scale and mechanical aiming lock
Static load resistance
RGB versions
Dimmable luminaire
Compatibility with DALI protocol
Compatibility with DMX protocol
Pass-through wiring
RGB with Real White versions
Tunable White versions
