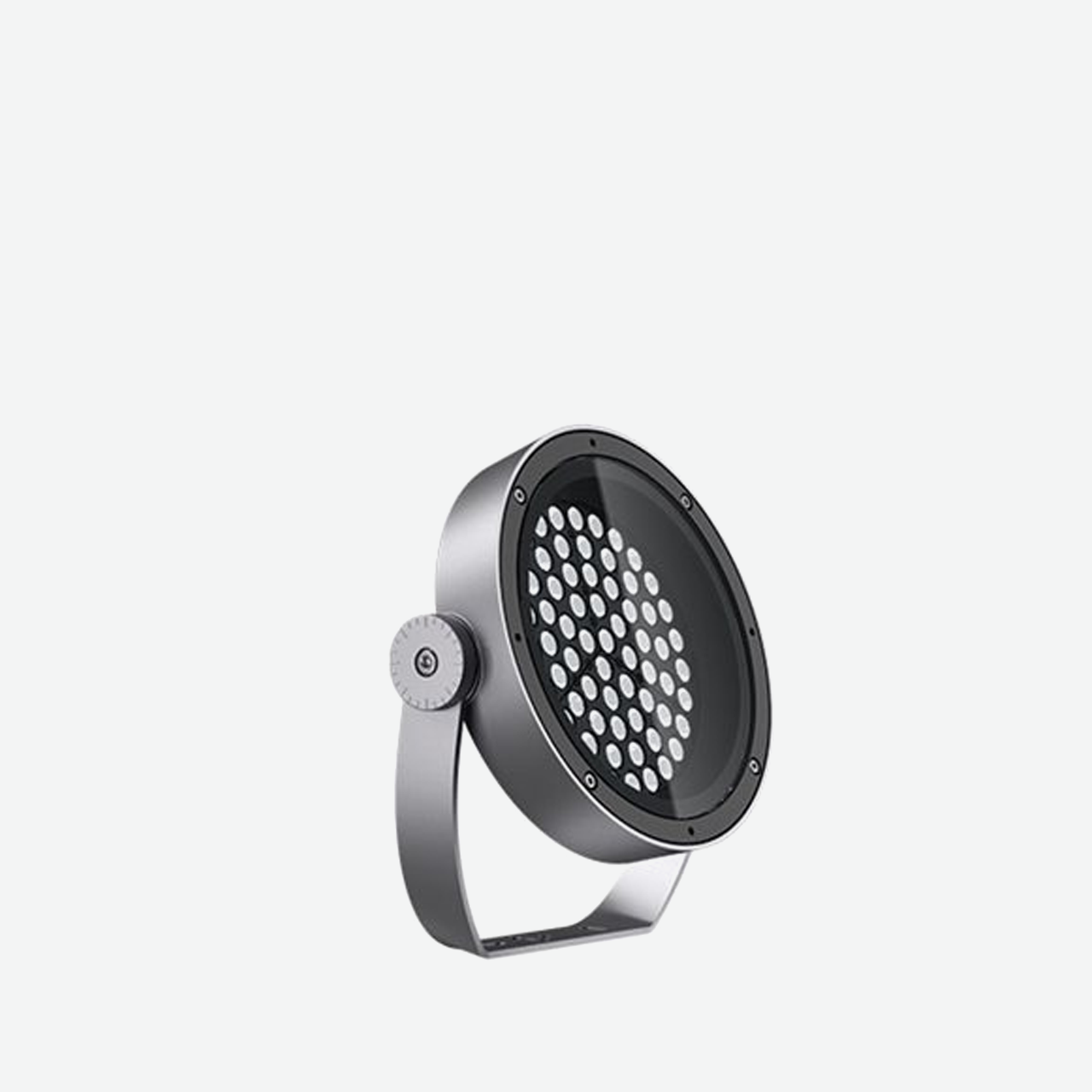

Agorà ø313mm slim
Overview
- Floodlight luminaire intended for use with LED light sources.
- Installation on floor, ceilings and walls with bracket and walls with handle.

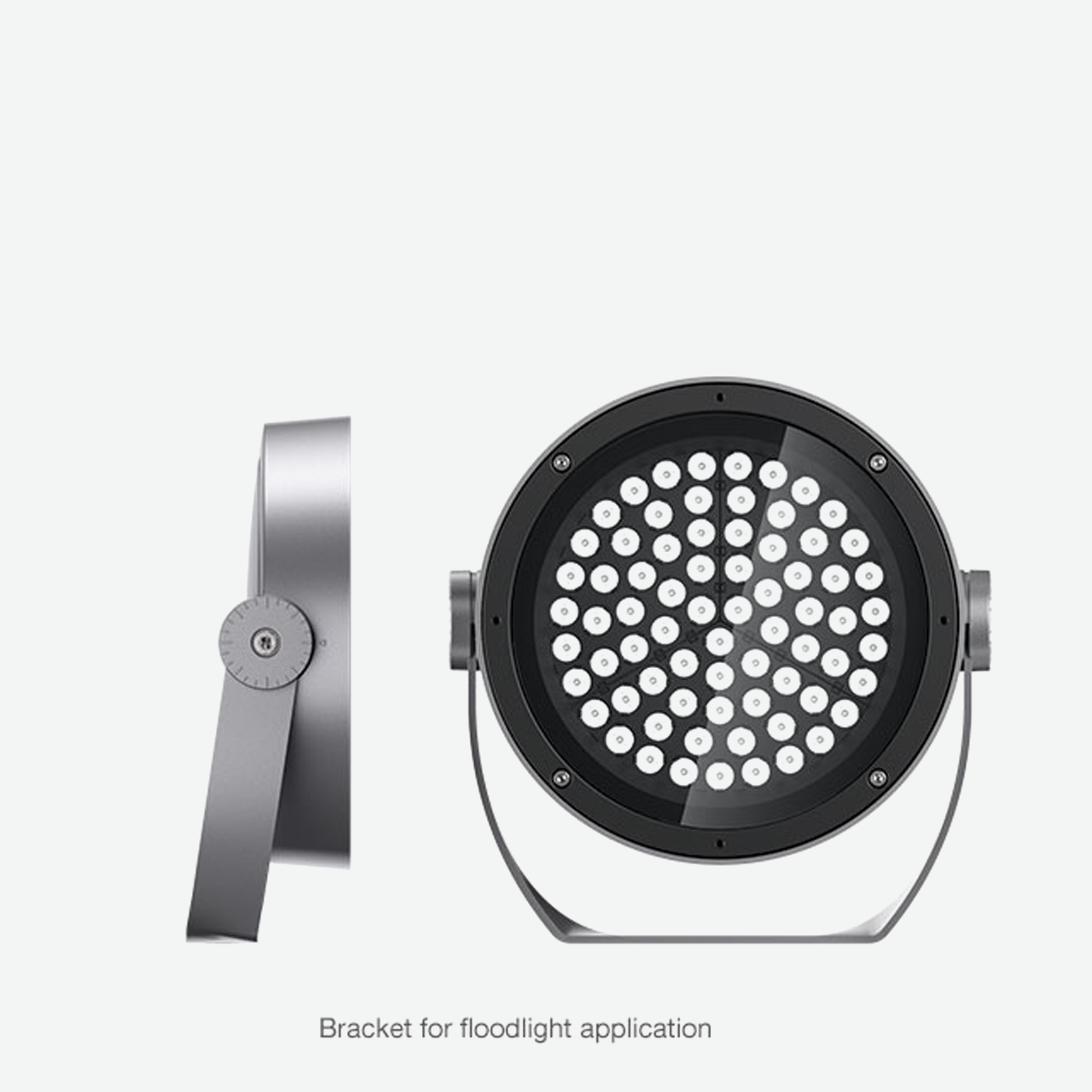

- Comprising an optical compartment in die-cast aluminium and transparent tempered sodium-calcium safety glass. Bracket for application on floodlight and bracket for application on handle to be ordered separately.
- Adjustable optical compartment in the horizontal plane (-50°/+90°).
- Graduated scale and mechanical aiming lock.
- A2 stainless steel cable gland.
- Electronic DALI power supply unit (IP67 / IP68) to be ordered separately to connect Agorà.
- Mini floodlights in series.
- IP66 / IK08 (IK10 with protective grille).
- Opti Beam Lens Optics.
- External optical (Cylindrical screen and Visor) and safety (Grille) accessories.
- Internal accessories (diffuser glass, lamellar louvre and refractor for elliptical distribution).
- All external screws used are in A2 stainless steel.
- Insulation class II.
Protection Ratings
-
Class I -
Class II -
IP66 -
IP67
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
CE -
EAC -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
Spike protection
