Underscore InOut Pixel Top Bend 16mm

Linear lighting fixture with RGBW LEDs (4000K CRI 80 white LEDs).

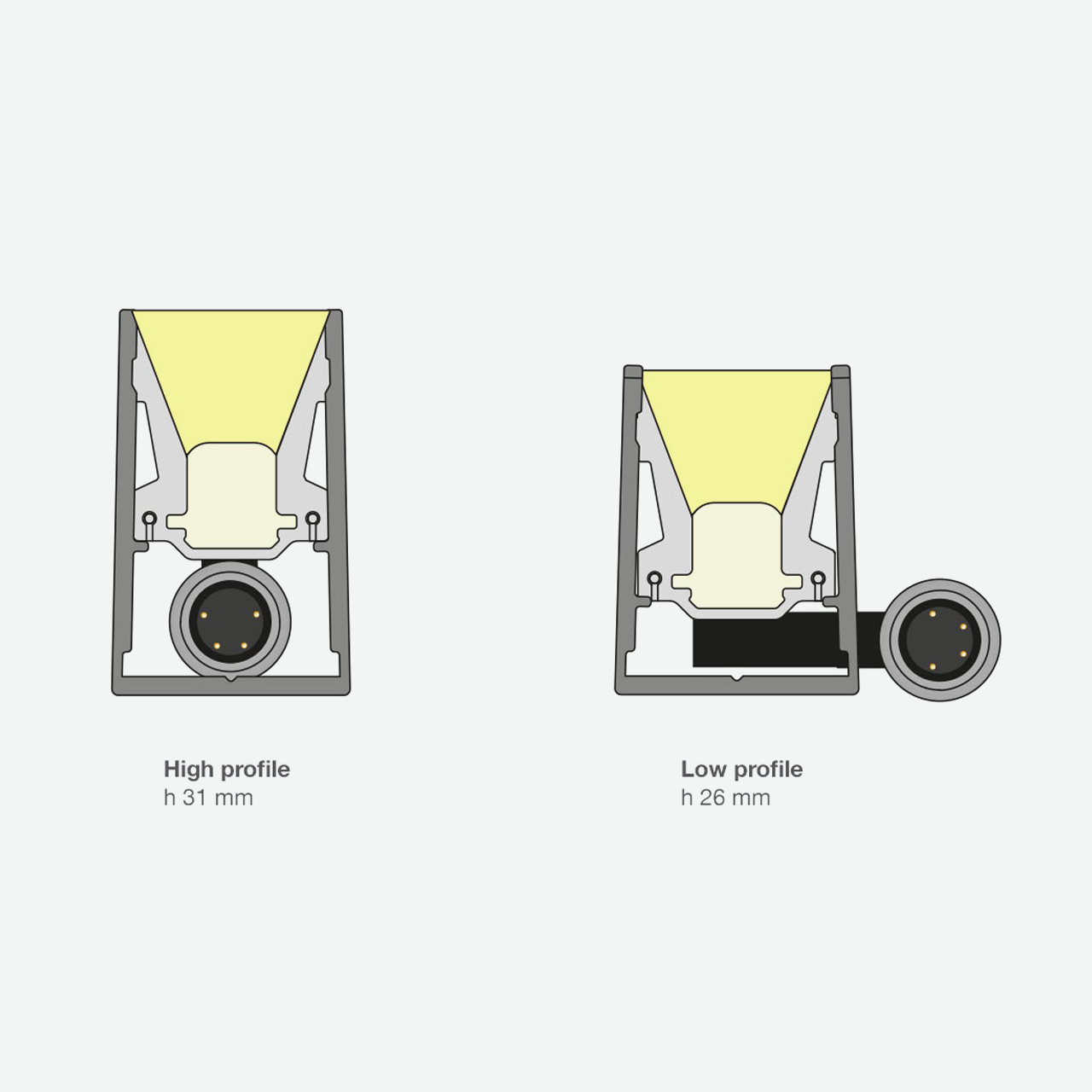

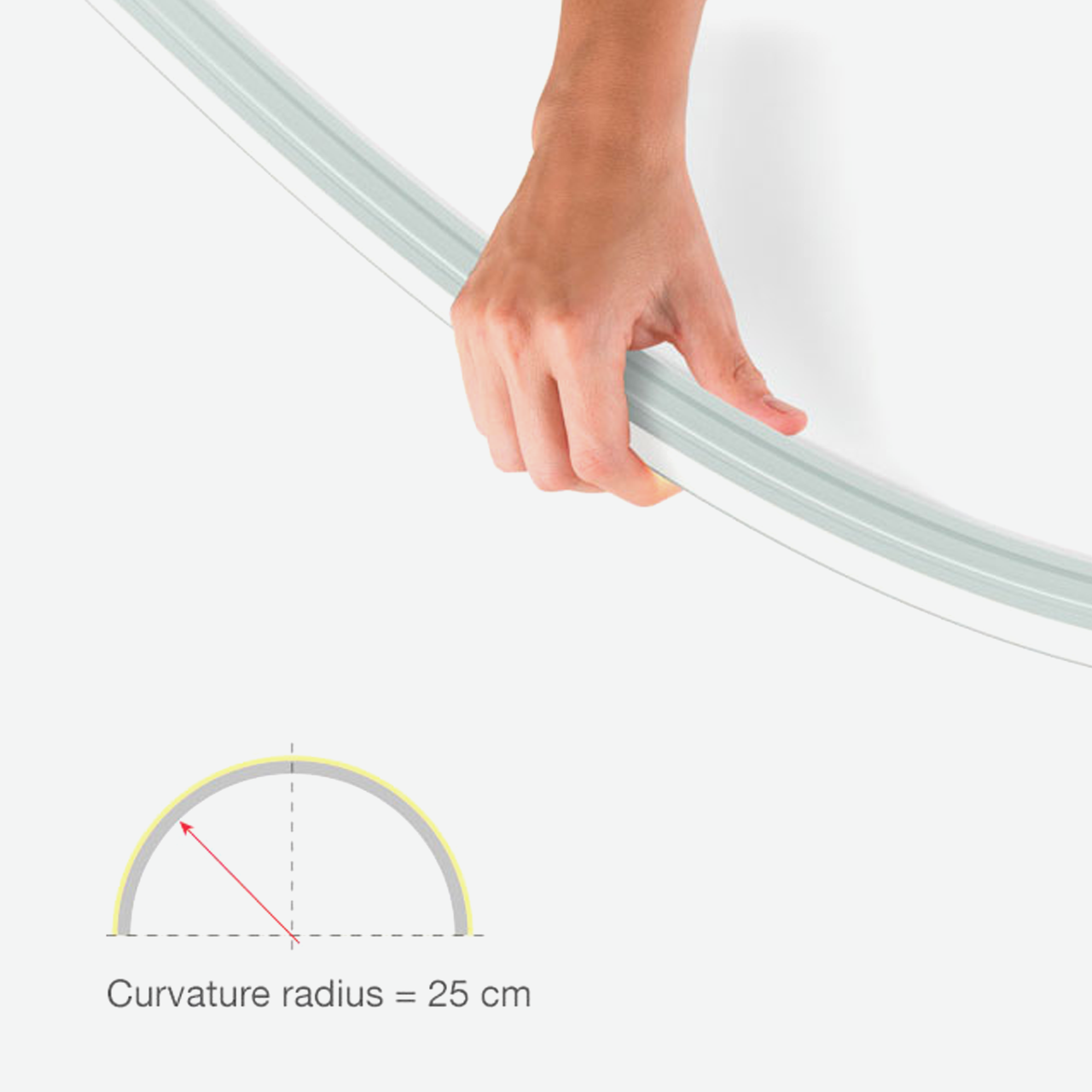

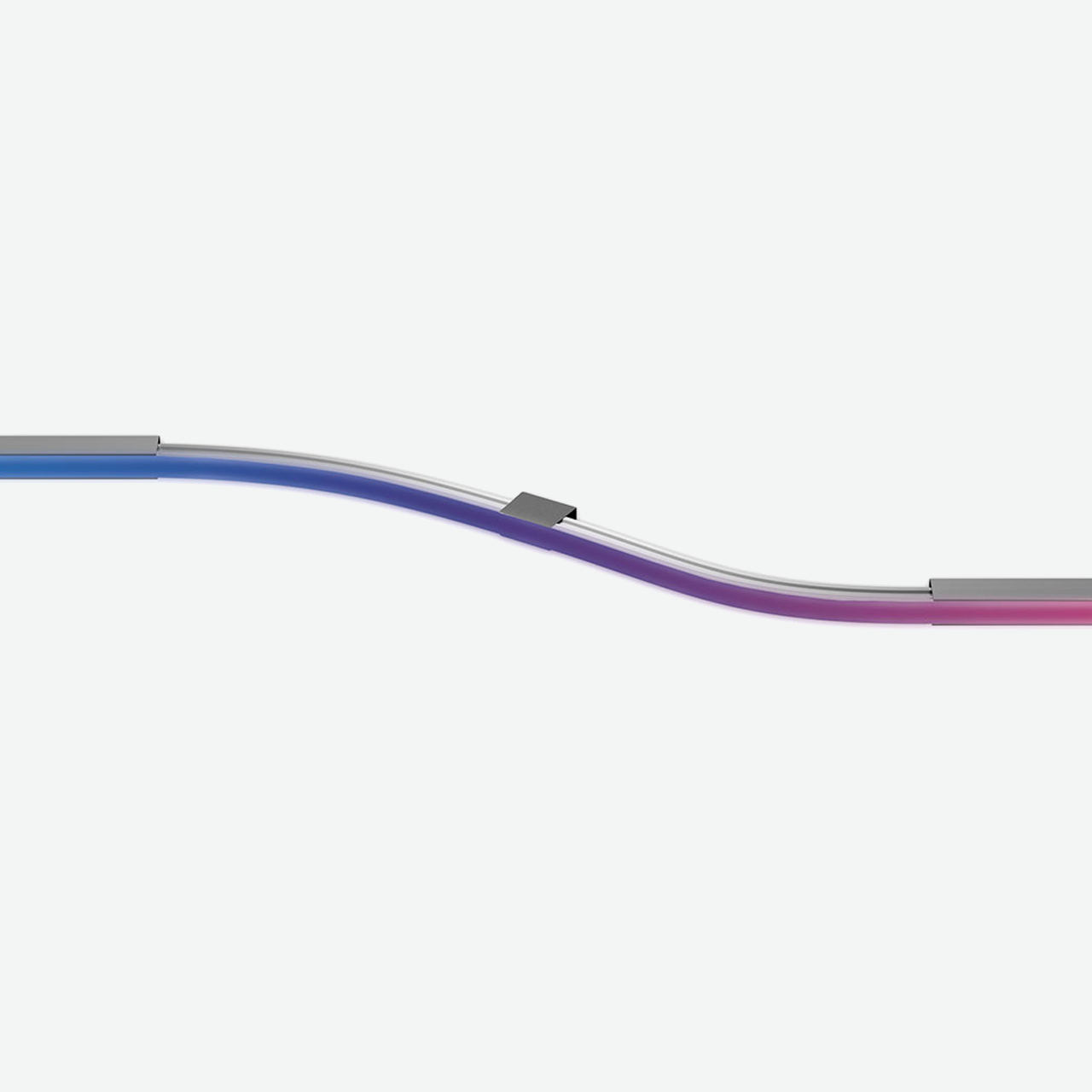

Surface installation with profiles (straight lines) or clips (curved lines).

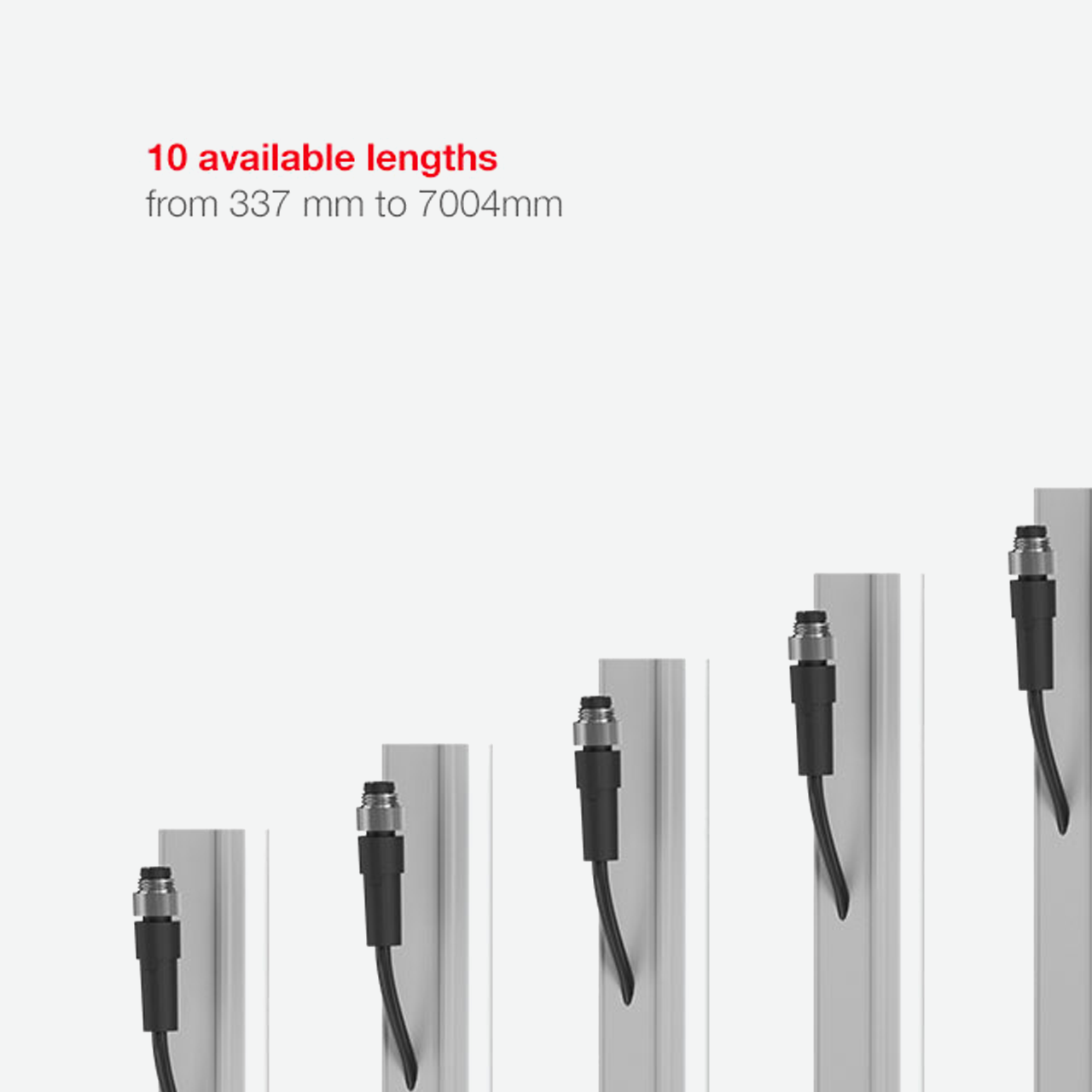

Implemented on a 24Vdc white flexible circuit with lengths from 337 mm to 7004 mm (10 lengths available).
The LED strip can be controlled via the SPI protocol, with addressing every 83.3mm (pixel pitch).
The LED circuit is fully IP68 encapsulated with a very high performance white (external) and opal (emitting surface) polymer sheath: the material can be used and installed even at extreme temperatures -30 °C +45 °C.
Uniform lighting without visible points is assured along the entire profile of the strip as far as the terminal parts.
Complete with L = 80 mm cables plus male (input cable) and female (output cable) connectors for unidirectional connection, IP68, equipped with anti-release ring nut.
Complete with stainless steel wires to limit plastic deformation of the body that may otherwise damage the LED circuit.
Resistant to brine, UV rays and solvents.
IK10 impact resistance.
Contact temperature <40°.
IP68 protection for product and cable alike using IP68 connectors.
The product is not considered suitable for installation in swimming pools and fountains.

Protection Ratings

Class III
IP68

Mechanical Resistance

Protected against 20 J shocks

Certifications & Approvals

CE
EAC
UK Conformity Assessed
BIS
QCERT

Key Features

RGB with Real White versions
