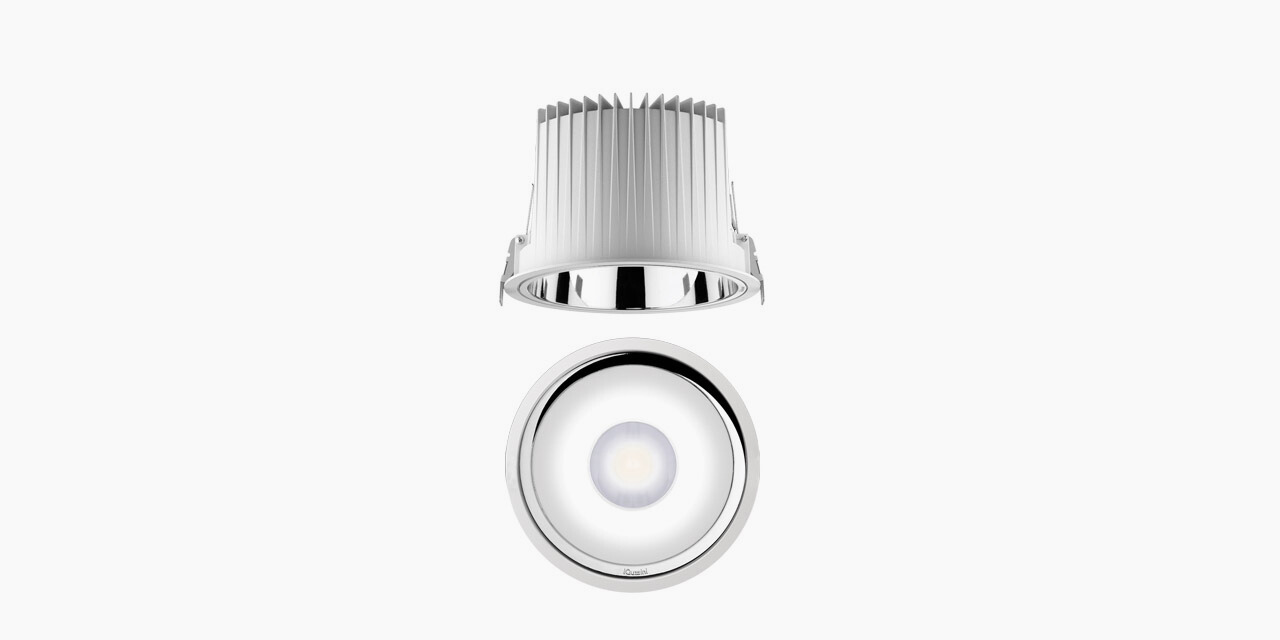

Reflex C.o.B. round
Overview
- Flush mount installation on false ceilings of thickness 12.5 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
- Body and heat-sink in die-cast and extruded aluminium.
- Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort.
- Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.
- General lighting versions available with white reflector.
- Available with electronic wiring and DALI.
- IP20
- IP43 on the visible body of the mount after installation (Minimal versions).
- IP54 on the visible body of the mount after installation (Frame versions).
Protection Ratings
-
Class I -
Class II -
IP20 -
IP23 -
IP43 -
IP54
Certifications & Approvals
-
CCC S&E -
CE -
EAC -
ENEC-03 -
NOM -
BIS -
QCERT
Key Features
-
Graduated scale and mechanical aiming lock -
Emergency lighting -
Luminaires ideal for interiors with video terminals -
Compatibility with DALI protocol -
Tunable White versions
