Indoor / Fixtures for low voltage track / Filorail / Palco Low Voltage framer ø 19 / 37 mm

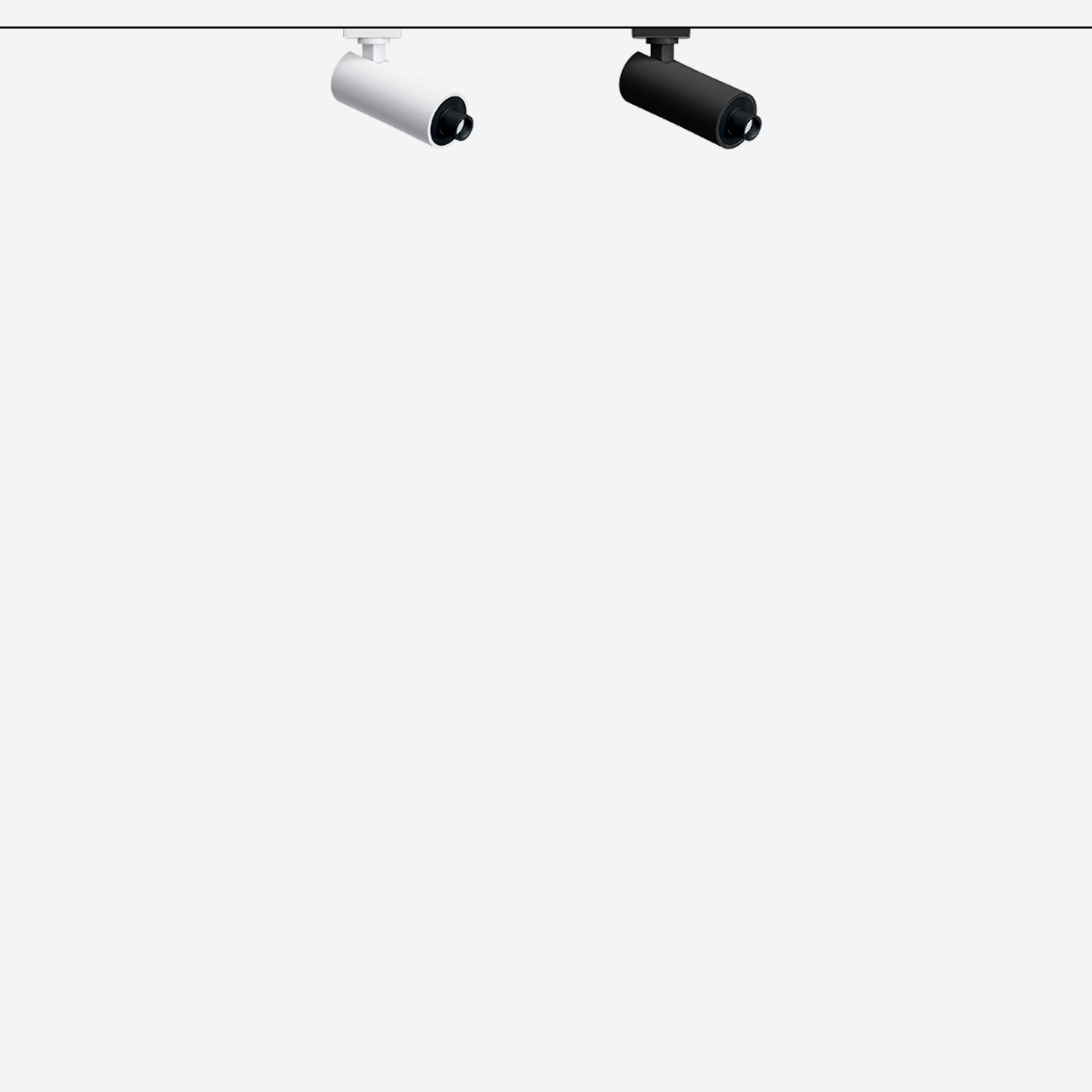

Palco Low Voltage framer ø 19 / 37 mm for Filorail DALI Broadcast

Installation on 48V (16A) Filorail track.
Miniaturised spotlights with integrated driver hidden in adapter.
Tool-free system for connecting the adapter to the track.
Spotlight body made of die-cast aluminium.
Ø19 spotlight with metal gobo and manual focusing system.
Ø37 with metal gobo and external flaps for adjusting and shaping the light beam.
Shape & Twist: Ø37 magnetic connection between the back and front body of the product that is fitted with a metal gobo and external flaps for adjusting and shaping the light beam into round or four-sided forms.
High colour rendering index CoB LED The adapter is made of a thermoplastic material and includes a driver circuit with PWM (Pulse With Modulation) technology.
The integrated PWM technology allows the light intensity to be adjusted by creating the effect of dimmed light without altering the quality of the light.

Protection Ratings

Class III
IP20

Certifications & Approvals

CE
EAC
ENEC-03
UK Conformity Assessed
BIS

Key Features

Luminaire angle relative to the horizontal plane
Luminaire rotation about the vertical axis
Graduated scale and mechanical aiming lock
Adjustment of light beam opening
Opti Beam high-performance reflectors
installation without tools
Dimmable luminaire
Compatibility with DALI protocol
