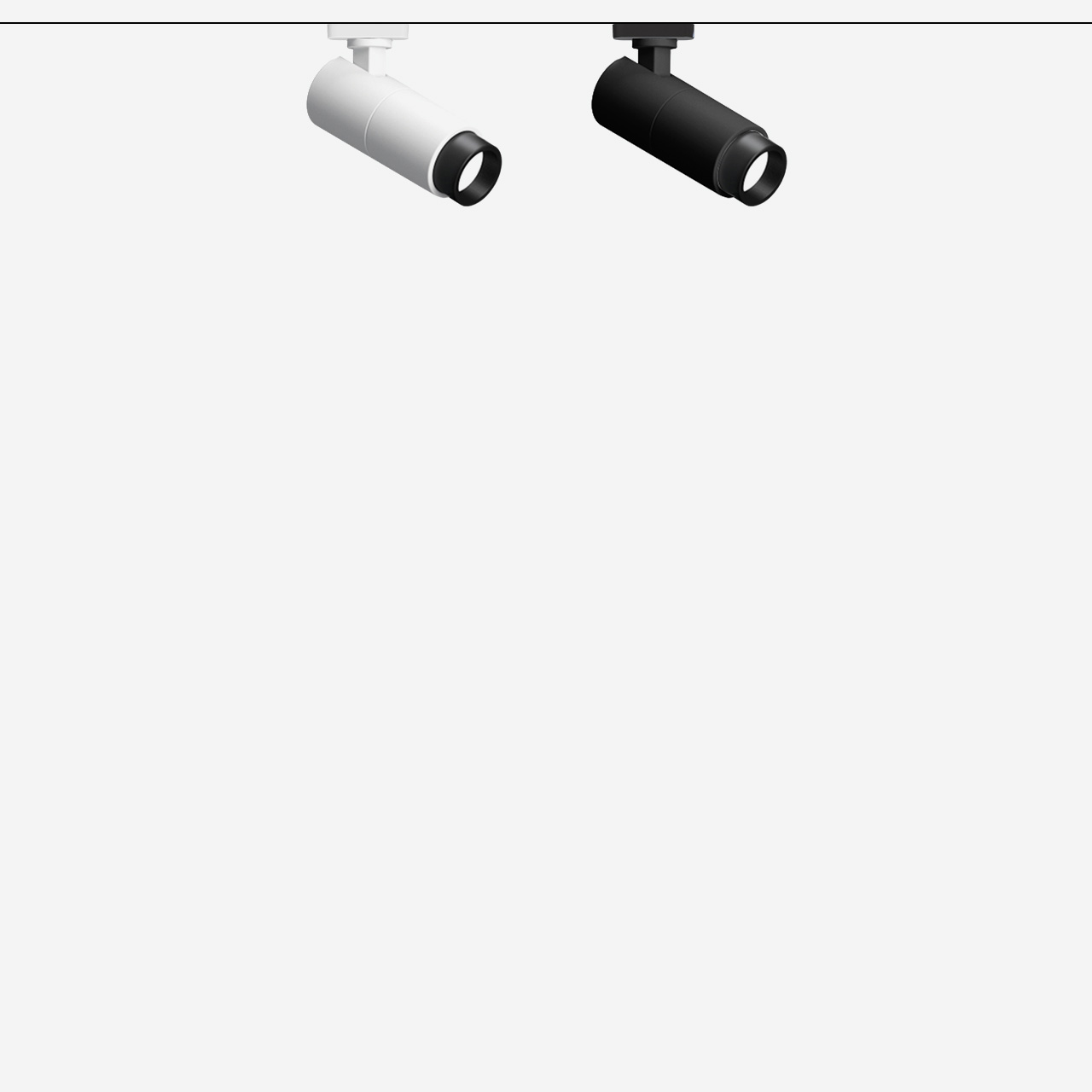

Palco Low Voltage Beamer ø 19 mm for Filorail DALI Broadcast
Overview
- Installation on 48V (16A) Filorail track.
- Miniaturised spotlights with integrated driver hidden in adapter.
- Tool-free system for connecting the adapter to the track.
- Spotlight body made of die-cast aluminium.
- High definition thermoplastic optical lenses.
- Option of manually adjusting the light beam by 10° up to 65° using the black anodised aluminium locknut.
- The optic system, combined with the option of manual adjustment provides sharp and well-defined illumination with no halo effects.
- High visual comfort.
- Swivel-adjustable by 90° horizontally and 355° vertically. High colour rendering index CoB LED.
- The adapter is made of a thermoplastic material and includes a driver circuit with PWM (Pulse With Modulation) technology.
- The integrated PWM technology allows the light intensity to be adjusted by creating the effect of dimmed light without altering the quality of the light.
Protection Ratings
-
Class III -
IP20
Certifications & Approvals
-
CE -
EAC -
ENEC-03 -
UK Conformity Assessed -
BIS
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol
