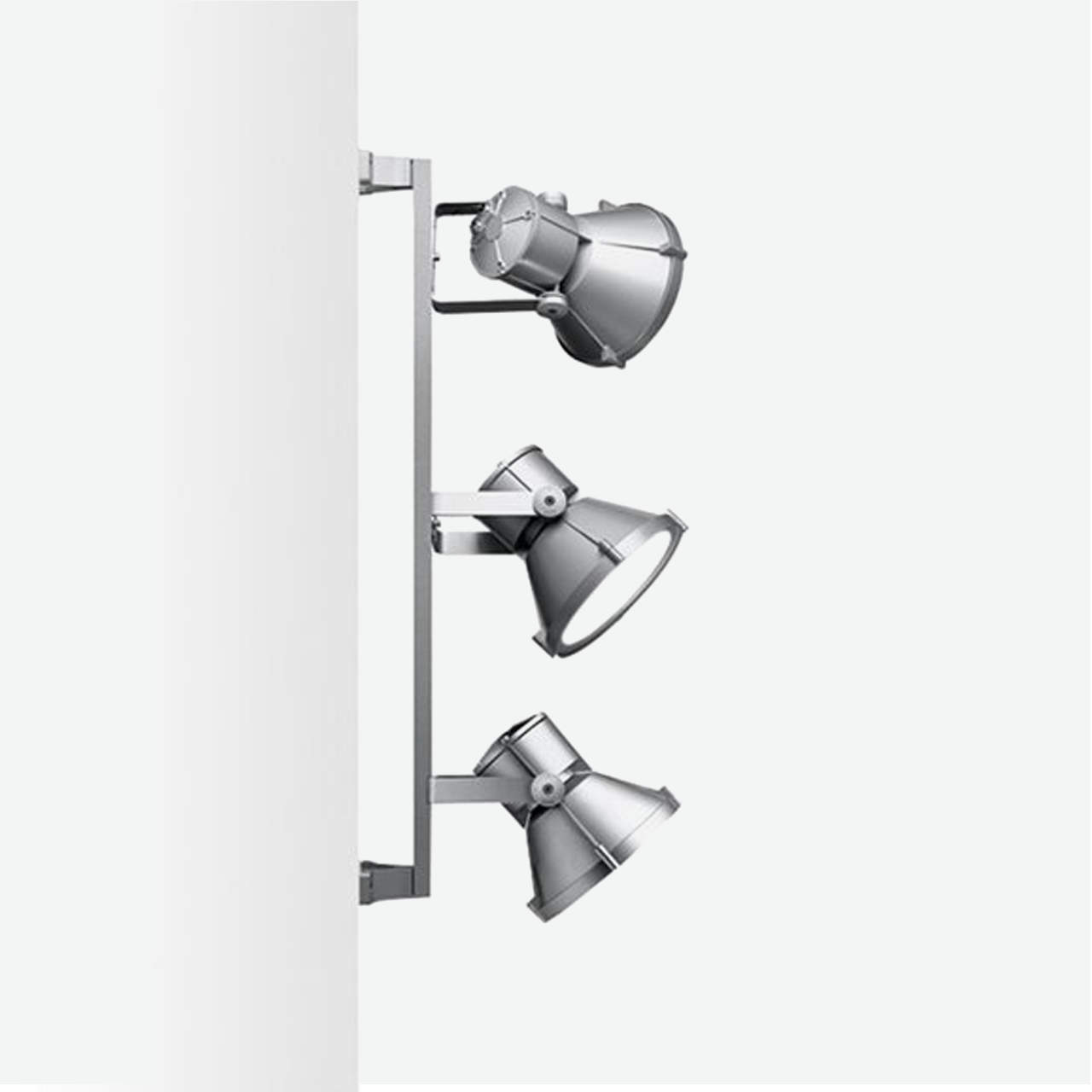

MultiWoody wall mounted
Overview
- Street lighting systems for use with LEDs and discharge lamps.
- Fitting has an optical assembly (MaxiWoody compact, small and medium body floodlight), arm .
- Optical assembly and frame in aluminium alloy; sodium-calcium tempered sealing glass, thickness 4 mm, secured with captive screws; 50-60 Shore A silicone gasket; superpure aluminium reflector.
- The support arms are in 70 micron hot galvanized steel and available in different length both in the pole and the wall version; pole fixing with painted aluminium flange, the fixing system does not require any drilling of the pole.
- (Conical) poles are in galvanized steel, available in two different heights: 4 and 7 metres off ground.
- No upward emission of light flow.
- Adjustable optical assembly.
- Luminaire ready for pass-through wiring.
- All screws are A2 stainless steel.
Protection Ratings
-
Class II -
IP67
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
AEMO -
CE -
EAC -
ENEC-03 -
UK Conformity Assessed -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
RGB versions -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
Opti Smart -
No upward emission of the light flow -
Pass-through wiring -
Tunable White versions
