Multi Agorà minimal and connected pole
Overview
- Urban light system, designed to use LED lamps.

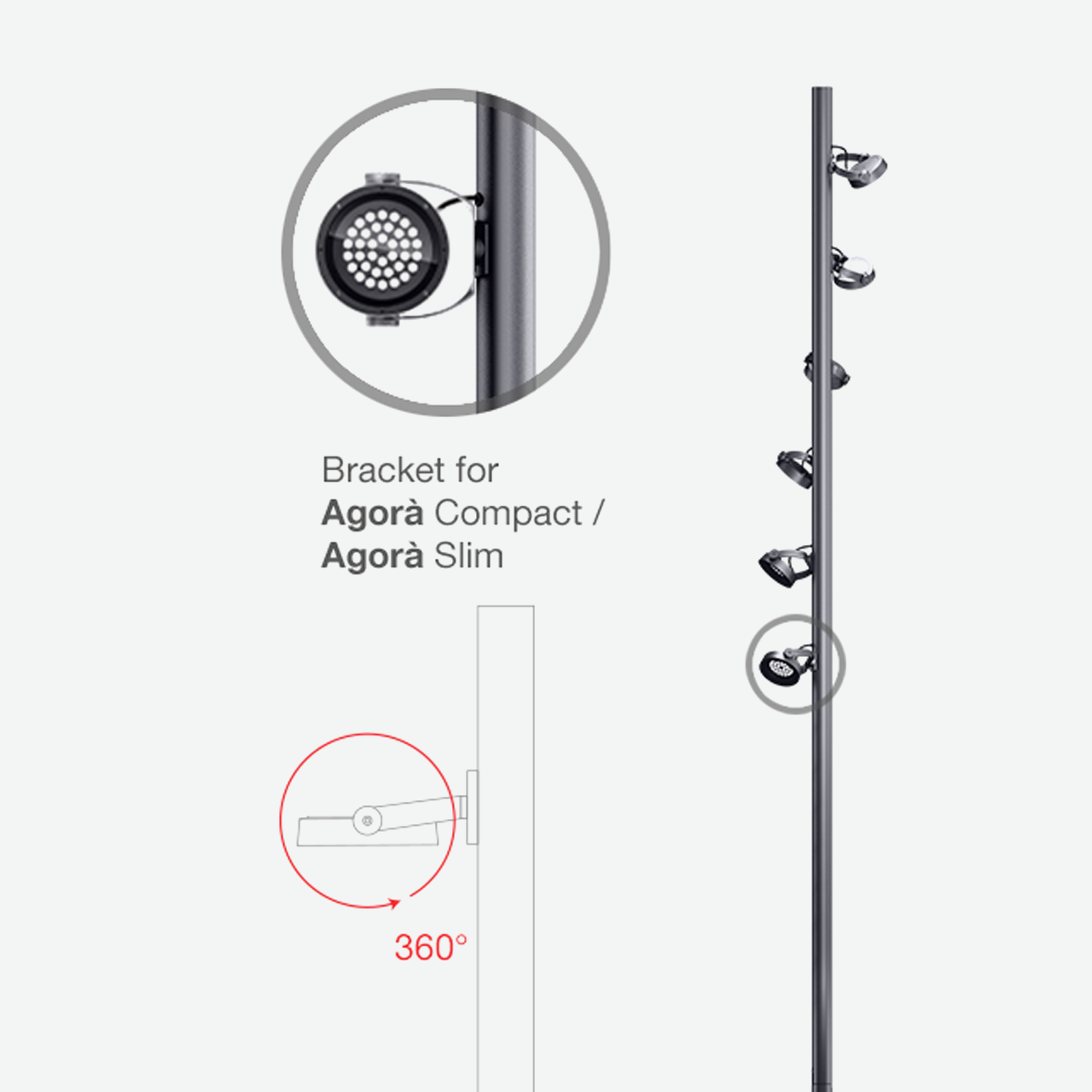

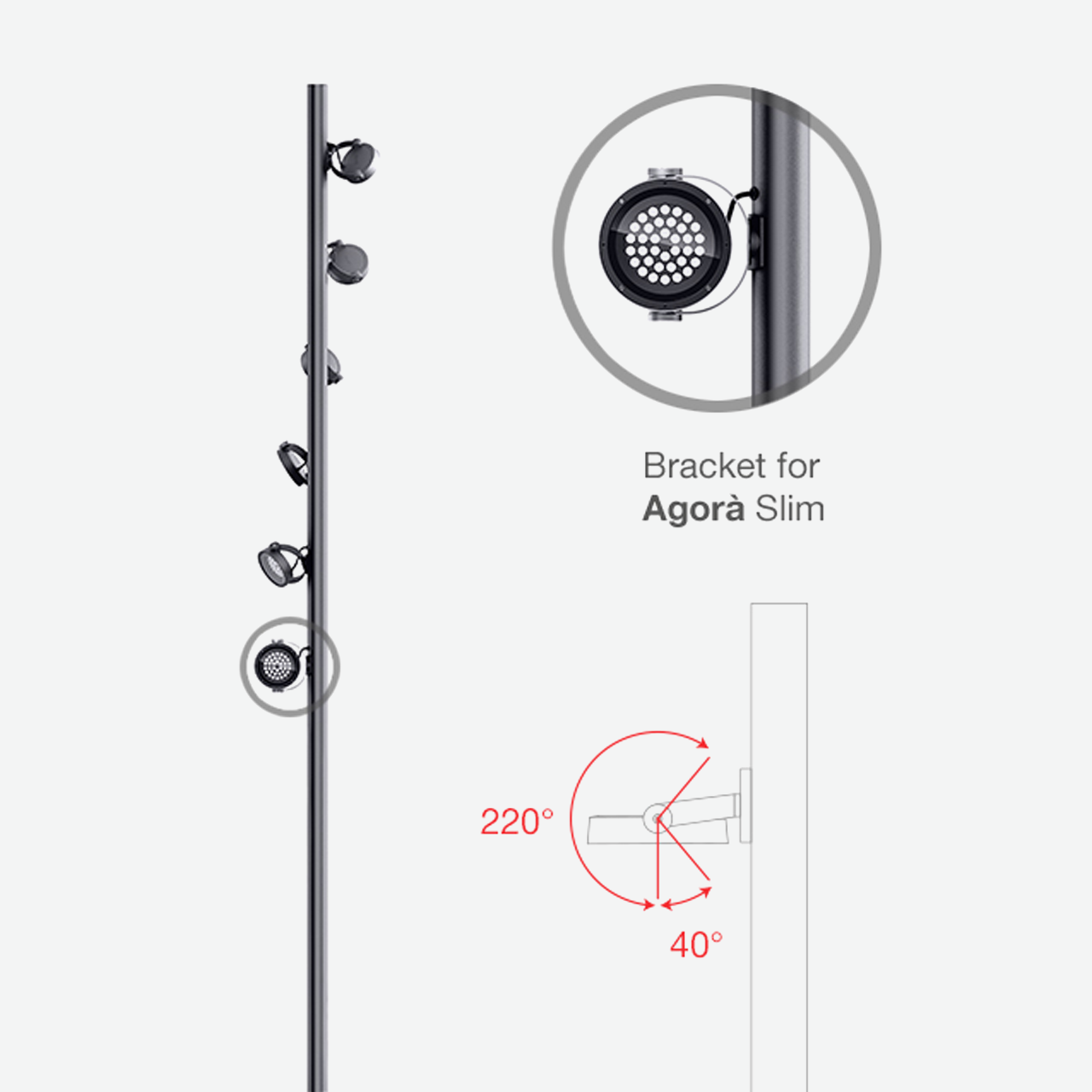

- Installation on pre-perforated poles with a minimal design flange and single or double arms for Ø102 - Ø120mm cylindrical-conical poles (Agorà Compact version and Agorà Slim version).
- Pre-perforated cylindrical-conical poles with the following holes: 2 holes with brass inserts for installing the flange and 1 hole with a rubber gasket for the installed product cable to pass through. Vertical, horizontal and 60° and 90° helix holes are also available.
- The poles are supplied pre-perforated, so their zinc and original paint coatings are integral and able to maintain a high level of rust resistance over time.
- The cylindrical-conical poles are supplied with two small opening panels that allow up to 3 power supply units (in the case of Agorà Slim) and a wiring terminal block to be installed.
- Positioning the power supply units inside the panel simplifies maintenance and reduces costs.
- The cylindrical-conical poles are supplied with two small opening panels that allow an IP68 box containing the BLE-DALI interface to be installed as well as a circuit that protects against overvoltages and a wiring PG (for Ø102mm poles and Ø120mm poles).
- The cylindrical-conical poles are available in heights of 5, 7, 9 and 12m both in a version for burial and a version with a plate in White, Black, Rust Brown and Grey.
Protection Ratings
-
Class I -
Class II -
IP66 -
IP67
Mechanical Resistance
-
Protected against 1 J shocks -
Protected against 5 J shocks
Certifications & Approvals
-
CE -
EAC -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
RGB with Real White versions
