Motus Pictogram
Overview
- Signalling of escape routes with pictogram and LED source.
- Ceiling/wall/vertical flag on wall installation without accessories. Polycarbonate component support structure with a white finish.
- Two-sided transparent luminous screen to which 1 or 2 pictograms can be applied. Kit of pictograms supplied.

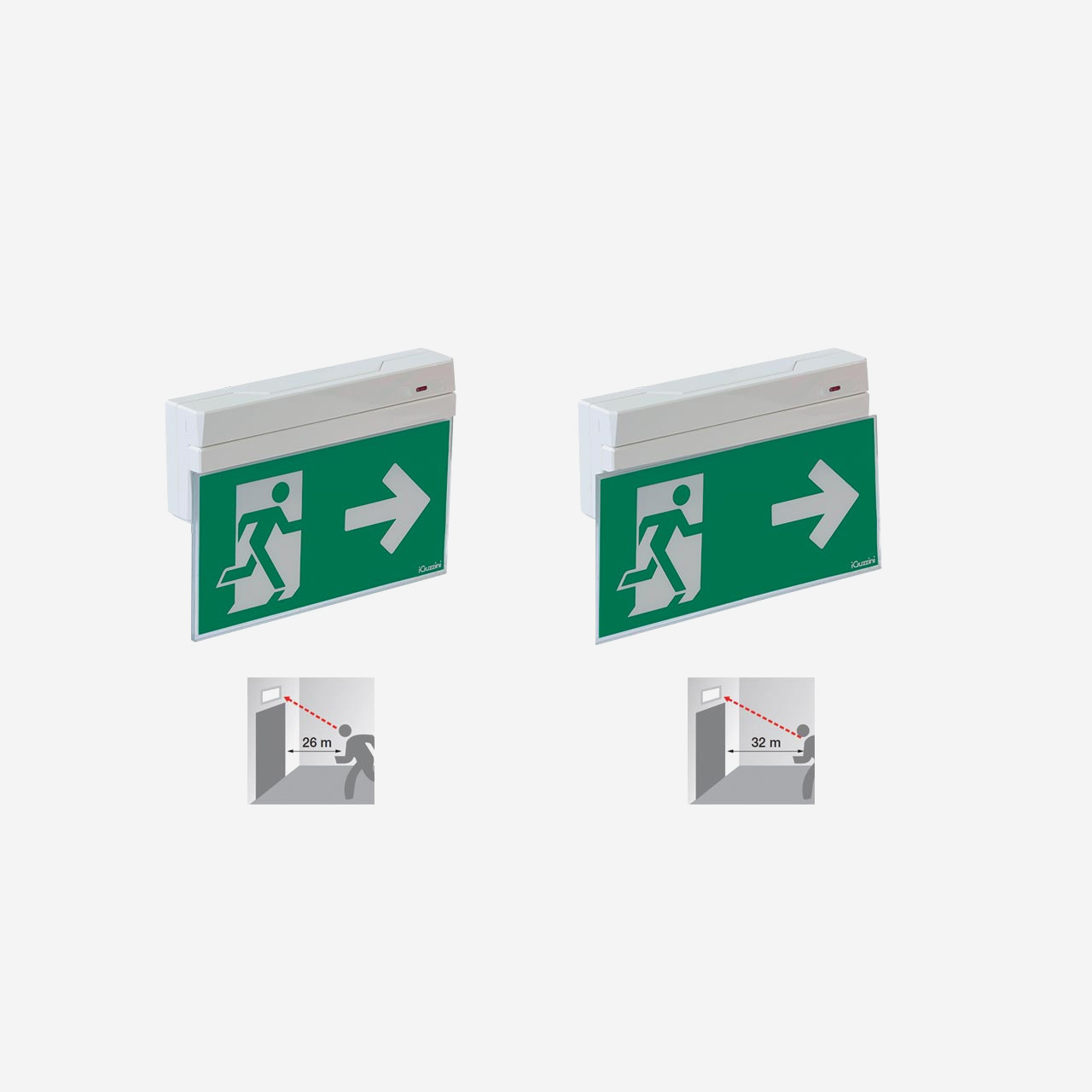

- Models for 26 m sign visibility distance (compliance with EN 1838 and ISO 7010). Models for 32 m sign visibility distance for large spaces.
- Permanent (SA) or non-permanent (SE) operation: cinema/theater mode with brightness reduction to 50%. 3h emergency autonomy (24h recharge, 12h for 2h autonomy).
- Latest generation LiFePO4 (Lithium- Iron-Phosphate) battery ensuring more stable performance over time and better environmental compatibility (nickel and cadmium free). Self-test.
- Multi-colour LED indicator signalling correct operation or any faults. Local test by acting on a button outside the body.
- Local test of lamp function using a standard laser pointer to perform the operation from the ground.
- An accessory kit with additional pictograms for special messages is available.
- Accessories available on request control unit for luminaires with centralised testing and signalling. Inhibition function.
Protection Ratings
-
Class I -
Class II -
IP40 -
IP42
Mechanical Resistance
-
Protected against 0,5 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
UK Conformity Assessed
Key Features
-
Emergency lighting
