Indoor / Wall luminaires / Motus / Escape ceiling/recessed

Motus Escape ceiling/recessed

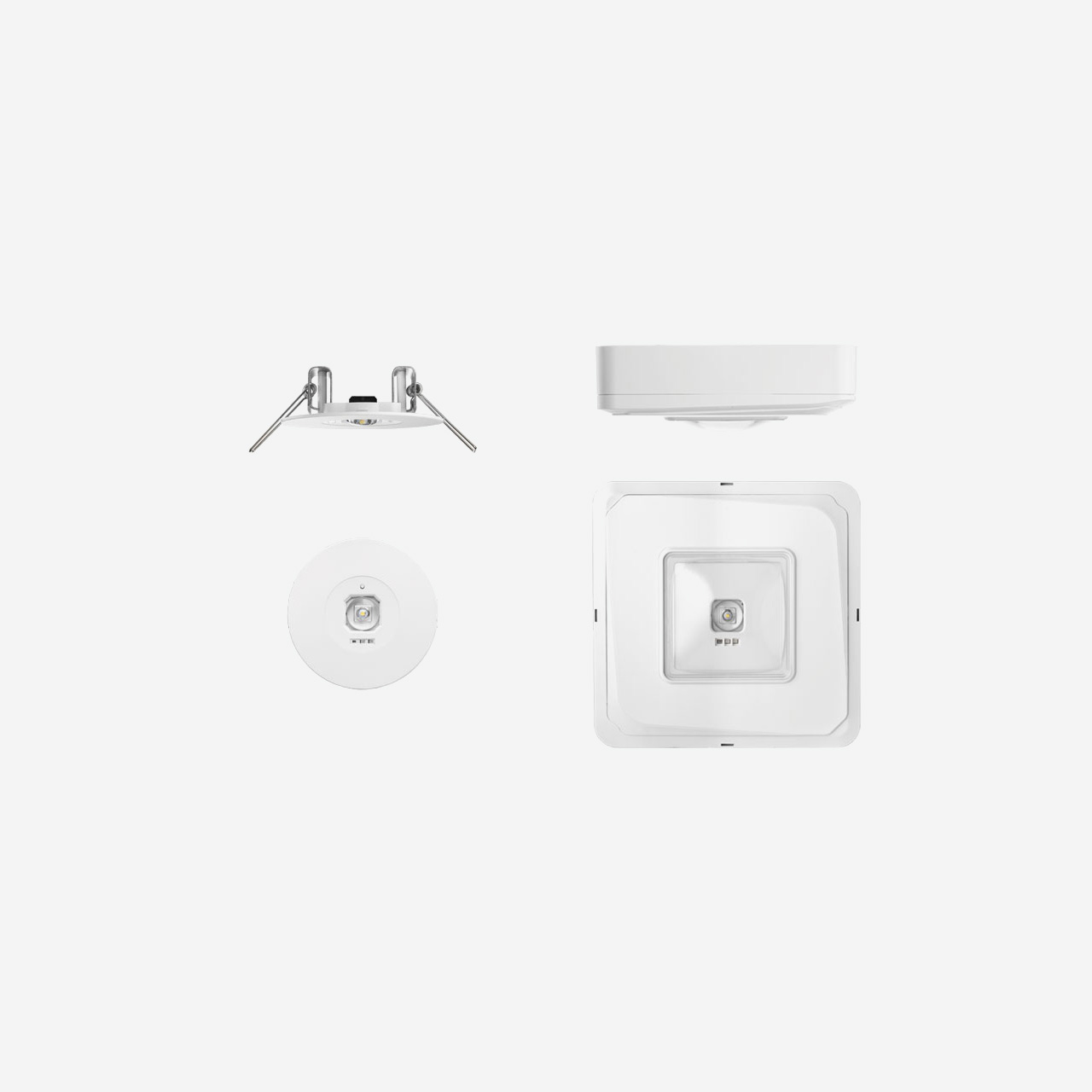

Independent emergency luminaire available as downlight and ceiling versions.
Escape route optics at 21 m distance intervals..
IP42 circular downlight version with springs for thicknesses of 1-30 mm, complete with battery unit and driver. Local testing button on the front.
Square, ceiling-mounted IP65 version with built-in driver and battery unit.
Screen and housing in self- extinguishing polycarbonate.
Advanced battery recharge system and optimal LED piloting.
Latest generation LiFePO4 (lithium ferrophosphate) battery ensuring excellent reliability at high temperatures, longer life and lower environmental impact.
All versions provide 3h autonomy with 12h recharge.
Maintained and non-maintained mode selected using dip-switches or external wiring. 100% or 50% power selected by dip-switches.
Automatic self-test at regular intervals with luminous feedback thanks to multi-colour LEDs on the front panel.
Local verification of lamp function using a standard Laser pointer operating on ground level.
Optional accessories: control unit for devices with centralised testing and signalling.
Inhibit function

Protection Ratings

Class II
IP20
IP65
IP42

Mechanical Resistance

Protected against 0,5 J shocks
Protected against 2 J shocks

Certifications & Approvals

CE
ENEC pending
NOM

Key Features

Emergency lighting
