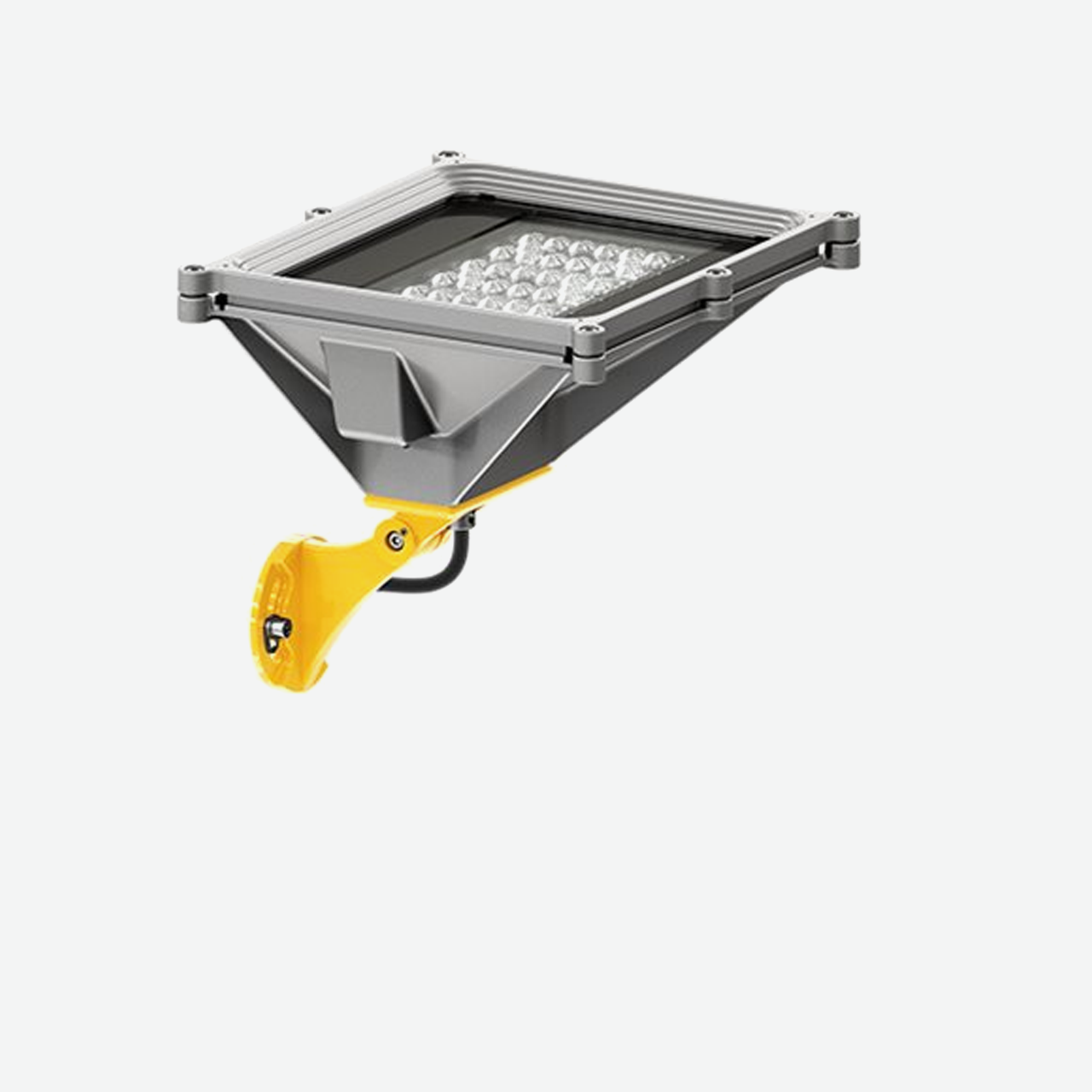

Lingotto without base
Overview
- Projector designed to use LED lamps.
- Floor-, wall- and ceiling-recessed.
- Consisting of an optical assembly, an arm with a swivel joint, and a glass-holder frame in aluminium alloy.
- 4mm thick, tempered sodium-calcium closing glass.
- Two types of Opti Smart Lens optics: White Opti Smart and Black Opti Smart.
- Opti Smart optics available: ST1, ST1.5, A60 and STCy0.5.
- 4 colour temperatures available: 2200K, 3000K and 4000K.
- Electronic DALI power supply included and compatible with Telemanagement systems.
- 5 finishes available: white, black, grey, rust brown and grey/yellow.
- All external screws used are made of A2 stainless steel.
Protection Ratings
-
Class I -
Class II -
IP66
Mechanical Resistance
-
Protected against 2 J shocks
Certifications & Approvals
-
CE -
EAC -
ENEC-03 -
UK Conformity Assessed -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Compatibility with DALI protocol -
Spike protection
