Linealuce 47 surface Remote

Luminaire intended for use with monochromatic and LED and RGBW light sources (44-52Vdc DMX-RDM / DALI), Tunable White and RGB (48-52Vdc DMX-RDM / DALI).
RGB-RGBW and Tunable White (TW) versions with DALI driver available upon request.
Wall and ceiling mount as well as support with adjustable arms.
Comprising housing with a DMX-RDM / DALI driver and end caps.
Extruded aluminium body and flush end caps in die-cast zamak complete with silicone gaskets.
Liquid acrylic paint ensuring high resistance to atmospheric agents and UV rays.
Optical compartment closed at the top by a 4mm thick transparent glass screen secured with silicone.
Supplied with double nickel-plated brass cable gland, outgoing PVC cables and IP68 male and female connectors at the end for pass-through wiring.
Equipped with optics with plastic lenses (methacrylate).

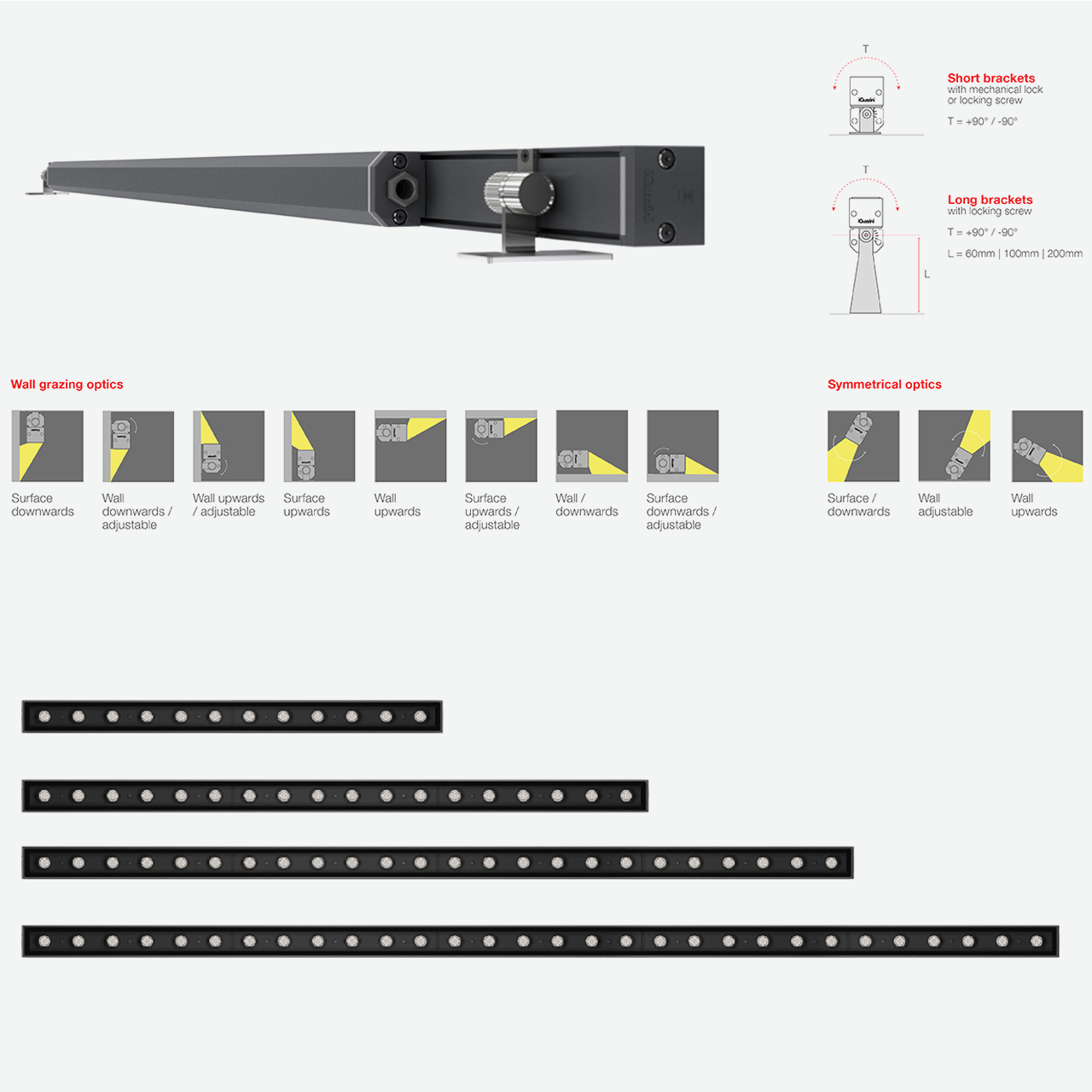

Wall-grazing Spot light distribution optics (WGS), Wall grazing Medium (WGM) and Wall grazing WF (Wide Flood).
Optics for Accent and Flood Light distributions - Spot (S), Flood (F) and WF (Wide Flood) types.
Internal accessory filters for elliptical distribution.
Internal accessories: longitudinal blade - louvre, crossways blade louvre and honeycomb for high visual comfort.
External accessories: symmetrical and asymmetrical crossways blade screens for high visual comfort in down-light applications.
Electronic power supply unit to be ordered separately and internal DMX-RDM / DALI driver.
All external screws used are in A2 stainless steel.

Protection Ratings

Class II
Class III
IP66

Mechanical Resistance

Protected against 1 J shocks

Certifications & Approvals

CCC Pending
CCC S&E
CE
EAC
ENEC-03
UK Conformity Assessed
BIS
QCERT

Key Features

Graduated scale and mechanical aiming lock
Static load resistance
RGB versions
Dimmable luminaire
Compatibility with DALI protocol
Compatibility with DMX protocol

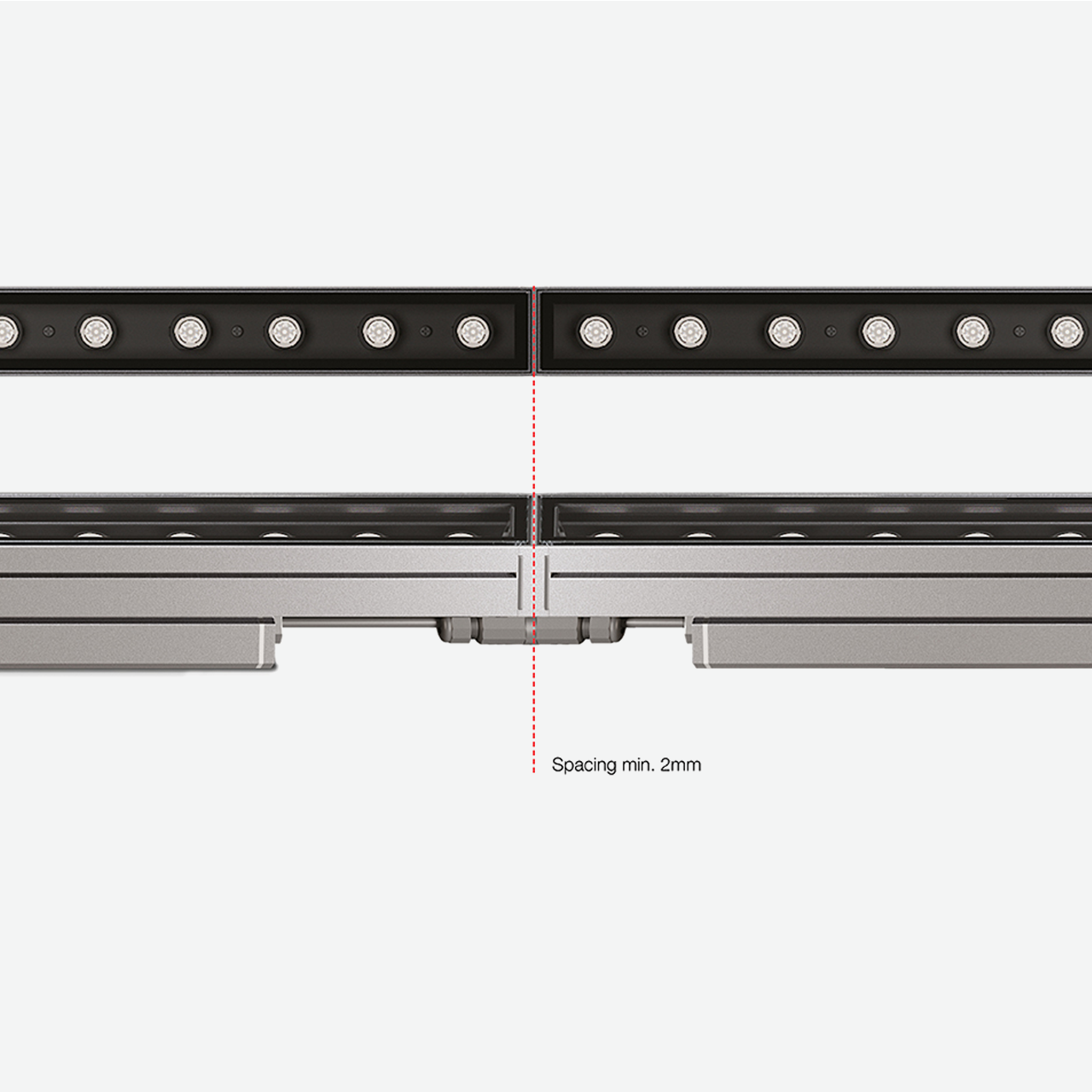

Pass-through wiring
RGB with Real White versions
Tunable White versions
