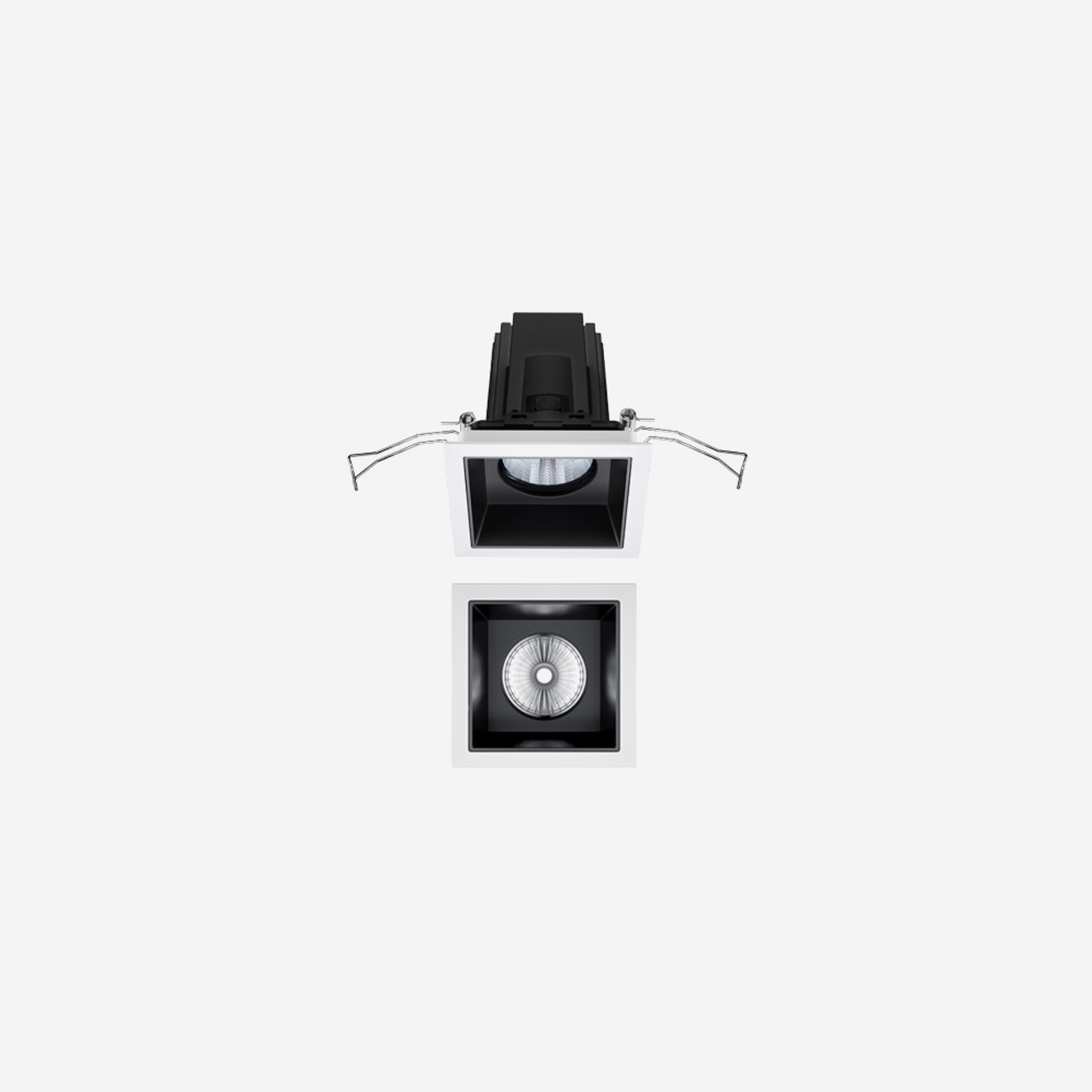

Laser fixed square
Overview
- Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using steel wire springs.
- Frame and heat sink in die-cast aluminium.
- Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort.
- ontrolled luminance emissions, UGR<13 comfort and UGR<10 super comfort versions.
- Available with on-off wiring and dimmable versions.
- The minimum installation space dimensions are listed in the instruction catalogue.
- IP20
- IP44 on the visible body of the mount after installation.
Protection Ratings
-
Class III -
IP20 -
IP44
Certifications & Approvals
-
EAC -
ENEC-03 -
NOM -
BIS -
QCERT
Key Features
-
Opti Beam high-performance reflectors -
Luminaires ideal for interiors with video terminals -
Dimmable luminaire -
Compatibility with DALI protocol -
Presence detector
