Indoor / Wall luminaires / Allure / Smart 120x150 mm

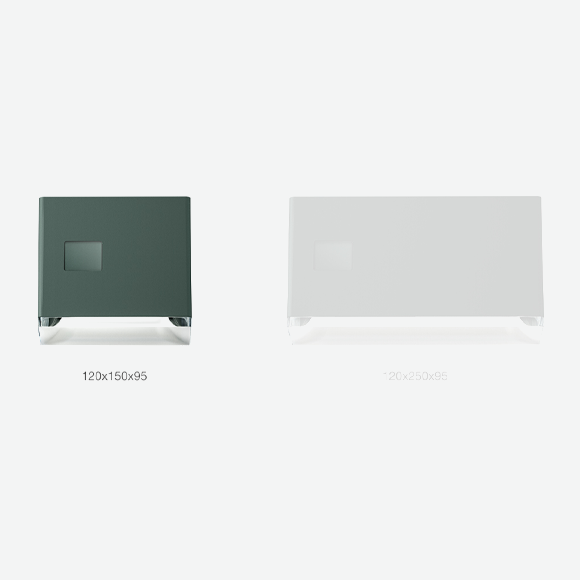

Allure Smart 120x150 mm

LED luminaire designed for hospitality and urban areas.
Wall-mounted installation.
Consists of an optical assembly, a top glass, a bottom glass and a closing raster.
The optical assembly is made of an aluminium alloy and subjected to a multi-step, pre-treatment process.
The closing raster:
- is available in 10 finishes, flush-mounted, or with a visible border.
- is mandatory for installing the product and must be purchased separately.
The 5mm thick glass upper cover is serigraphed.
On/off power supply included in product.
Fitted with an integrated HF presence and twilight sensor.
Two versions available:
- Plug&Play
- Programmable

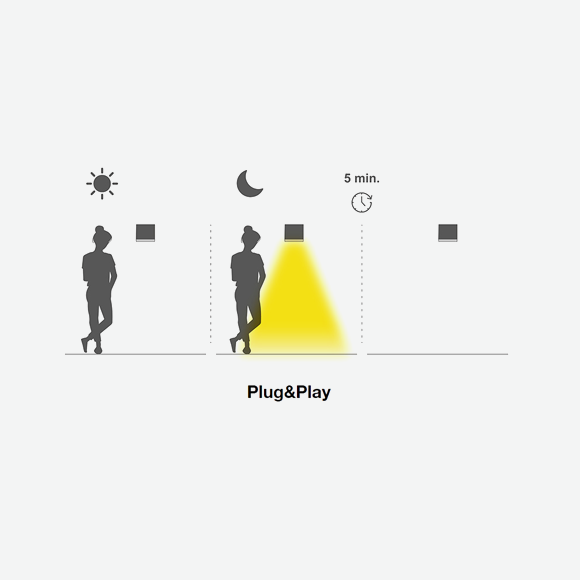

The Plug&Play version has default values:
- Maximum light level with presence: 100%
- Wait before shifting to a low light level: 5 minutes.
- Minimum light level without presence: 0%

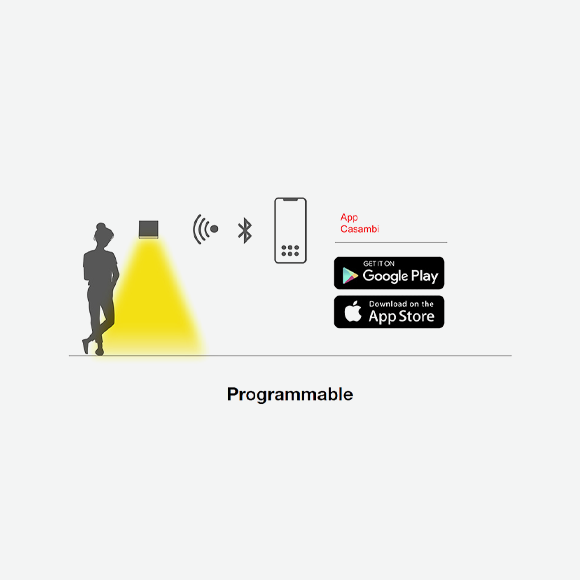

The Programmable version must be programmed using Casambi app.
The product is fitted with 1 PG13 for installing 8.5mm to 12.5mm diameter cables.
IP66-IK06.
Insulation class I.
5 finishes.
All external screws used are made of A2 stainless steel.

Protection Ratings

Class I
IP66

Mechanical Resistance

Protected against 2 J shocks

Certifications & Approvals

CE
EAC
ENEC-03
UK Conformity Assessed
BIS

Key Features

Daylight sensor
Presence detector
