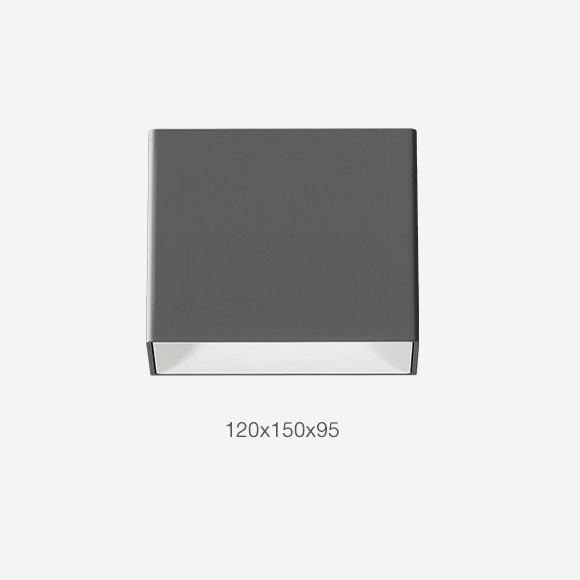

Allure Graphic 120x150 mm
Overview
- LED luminaire designed for hospitality and urban areas.
- Wall-mounted installation.
- Consists of an optical assembly, a top glass, a bottom glass and a closing raster.
- The optical assembly is made of an aluminium alloy and subjected to a multi-step, pre-treatment process.
- The closing raster:
- is available in 10 finishes, flush-mounted, or with a visible border.
- is mandatory for installing the product and must be purchased separately.
- The 5mm thick glass upper cover is serigraphed.
- On/off power supply included in product.
- Two optics are available: Blade (L) and Adjustable Cone (ADJBEAM).
- The optics can be combined in Up/Down versions.
- The Adjustable Cone (ADJBEAM) optic ranges from 70° to 110°.
- The product is fitted with 1 PG13 for installing 8.5mm to 12.5mm diameter cables.
- IP66-IK06.
- Insulation class I.
- 5 finishes.
- All external screws used are made of A2 stainless steel.
Protection Ratings
-
Class I -
IP66
Mechanical Resistance
-
Protected against 1 J shocks
Certifications & Approvals
-
CE -
EAC -
ENEC-03 -
UK Conformity Assessed -
BIS -
QCERT
