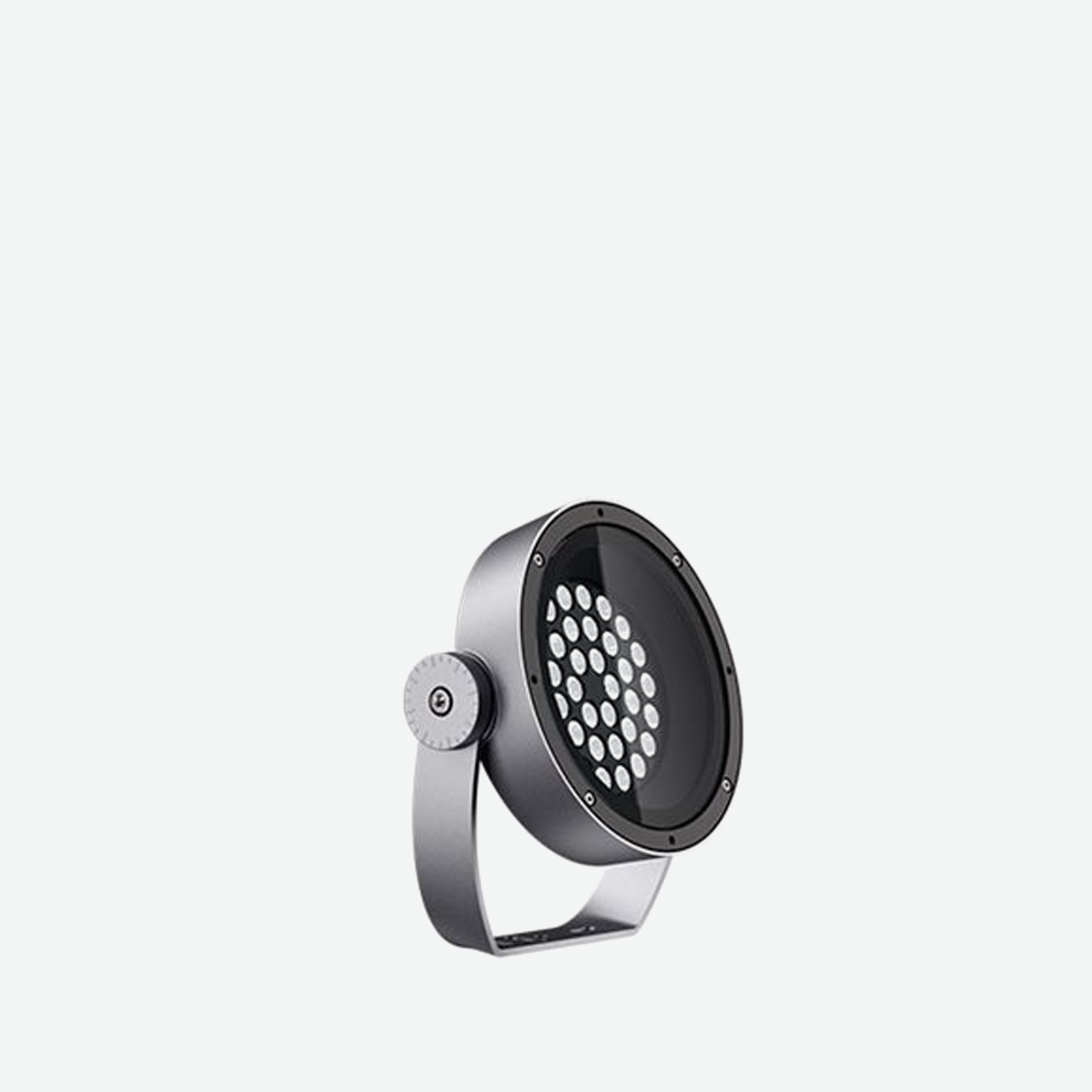

Agorà ø254mm slim

Floodlight designed to use LED lamps.
Floor, ceiling or wall-mounted. Wall-mounted with either a bracket or handle (special bracket) and pole-mounted with an arm or flange.

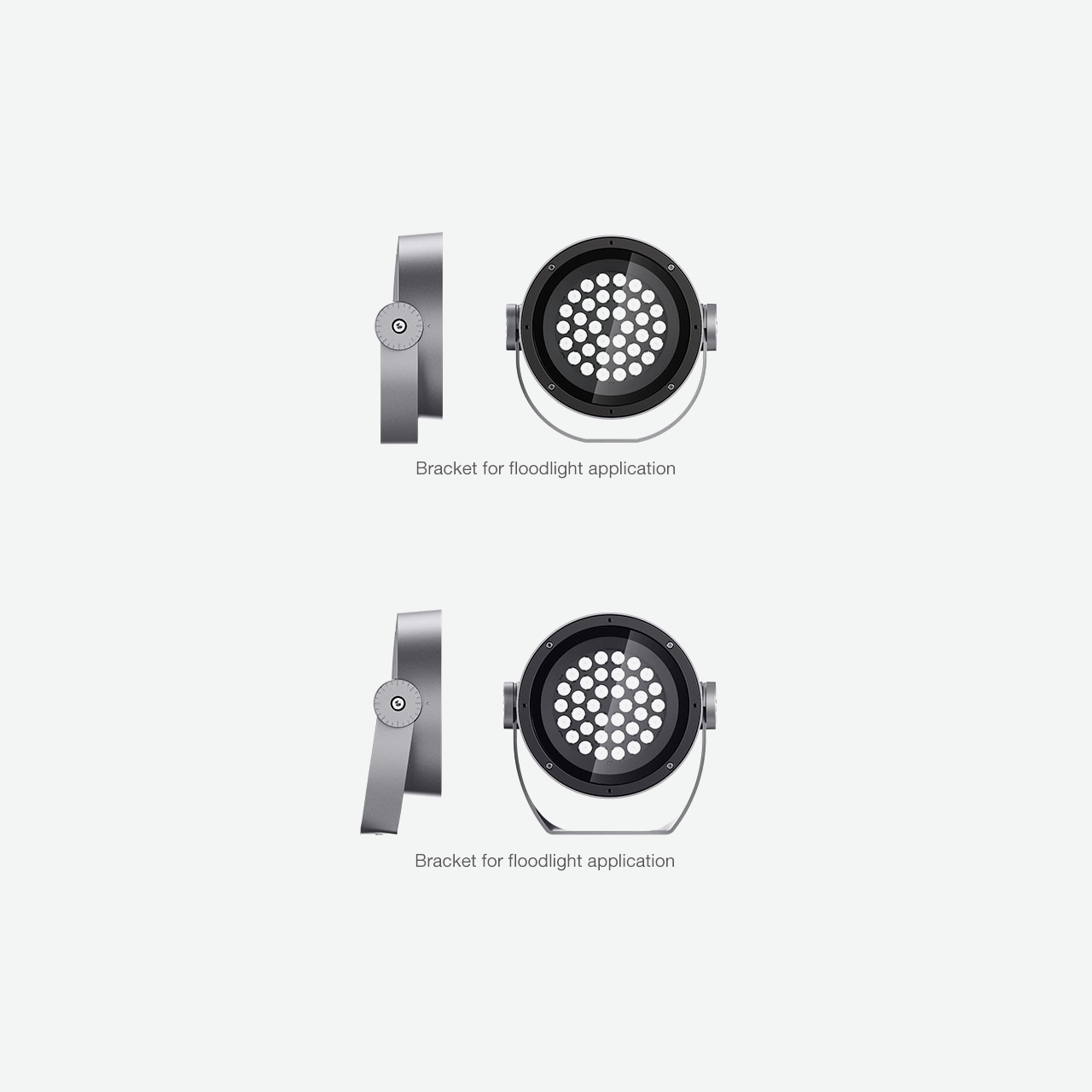

Consists of a die-cast aluminium optical assembly and a clear tempered sodium-calcium safety glass cover. Bracket for installation as a spotlight and bracket for handle application to be ordered separately.
The optical assembly can be adjusted on a horizontal plane (-50°/+90°).
Graduated scale and mechanical locking device for precision aiming.
A2 stainless steel cable gland.
DALI power supply unit to be ordered separately together with the accessory box X653 that guarantees an IP66 rating.
IP66 / IK08 (IK10 with protective grille).
Optibeam Lens, Optibeam Reflector and Optismart Lens optics.
External optical (cylindrical screen and 45° cylindrical screen) and safety accessories (protective grille).
Internal accessories (diffusing glass covers, lamellar louvers and refractor for elliptical distribution).
Insulation class I.
All external screws used are made of A2 stainless steel.
In the case of installations on insulated supports (e.g. fibreglass poles), please contact us to request a customised product equipped with an accessory that protects the device from possible failure due to electrostatic charges.

Protection Ratings

Class I
IP66

Mechanical Resistance

Protected against 5 J shocks

Certifications & Approvals

CE
EAC
ENEC-03
PEP Ecopassport
UK Conformity Assessed
BIS
QCERT

Key Features

Luminaire angle relative to the horizontal plane
Luminaire rotation about the vertical axis
Graduated scale and mechanical aiming lock
Opti Beam high-performance reflectors
Compatibility with DALI protocol
Spike protection
